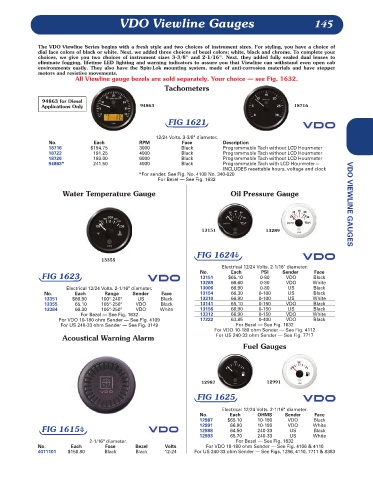

VDO Viewline Gauges 145

The VDO Viewline Series begins with a fresh style and two choices of instrument sizes. For styling, you have a choice of
dial face colors of black or white. Next, we added three choices of bezel colors: white, black and chrome. To complete your
choices, we give you two choices of instrument sizes 3-3/8" and 2-1/16". Next, they added fully sealed dual lenses to
eliminate fogging, lifetime LED lighting and warning indicators to assure you that Viewline can withstand even open cab
environments easily. They also have the Spin-Lok mounting system, made of anti-corrosion materials and have stepper
motors and resistive movements.
All Viewline gauge bezels are sold separately. Your choice — see Fig. 1632.
Tachometers

94863 for Diesel
Applications Only 94863 18716

FIG 1621

12/24 Volts. 3-3/8" diameter.
No. Each RPM Face Description
18716 $194.75 3000 Black Programmable Tach without LCD Hourmeter
18722 191.25 4000 Black Programmable Tach without LCD Hourmeter
18726 193.00 6000 Black Programmable Tach without LCD Hourmeter
94863* 241.50 4000 Black Programmable Tach with LCD Hourmeter –
INCLUDES resettable hours, voltage and clock
*For sender, See Fig. No. 4108 No. 340-020
For Bezel — See Fig. 1632
Water Temperature Gauge Oil Pressure Gauge VDO VIEWLINE GAUGES

13151 13289

FIG 1624b
13355
Electrical 12/24 Volts. 2-1/16" diameter.
No. Each PSI Sender Face
FIG 1623 13151 $65.10 0-80 VDO Black
13289 66.60 0-80 VDO White
Electrical 12/24 Volts. 2-1/16" diameter. 13006 66.90 0-80 US Black
No. Each Range Sender Face 13154 66.30 0-100 US Black
13351 $66.90 100°-240° US Black 13310 66.90 0-100 US White
13355 65.10 105°-250° VDO Black 13141 65.10 0-150 VDO Black
13384 66.30 105°-250° VDO White 13156 66.90 0-150 US Black
For Bezel — See Fig. 1632 13312 66.90 0-150 VDO White
For VDO 10-180 ohm Sender — See Fig. 4109 17222 63.85 0-400 VDO Black
For US 240-33 ohm Sender — See Fig. 3149 For Bezel — See Fig. 1632
For VDO 10-180 ohm Sender — See Fig. 4112
For US 240-33 ohm Sender — See Fig. 7717
Acoustical Warning Alarm
Fuel Gauges

12987 12991

FIG 1625

Electrical 12/24 Volts. 2-1/16" diameter.
No. Each OHMS Sender Face
12987 $65.10 10-180 VDO Black
12991 66.90 10-180 VDO White
FIG 1615b 12988 64.50 240-33 US Black
12993 65.70 240-33 US White
2-1/16" diameter. For Bezel — See Fig. 1632
No. Each Face Bezel Volts For VDO 10-180 ohm Sender — See Fig. 4106 & 4110
4071101 $150.80 Black Black 12-24 For US 240-33 ohm Sender — See Figs. 1286, 4110, 7711 & 8383
