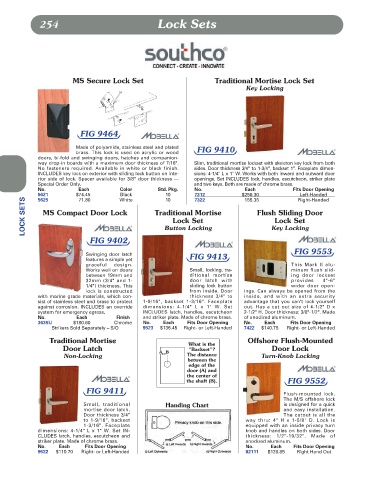

254 Lock Sets

MS Secure Lock Set Traditional Mortise Lock Set
Key Locking

FIG 9464

Made of polyamide, stainless steel and plated FIG 9410
brass. This lock is used on acrylic or wood
doors, bi-fold and swinging doors, hatches and companion-
way drop-in boards with a maximum door thickness of 7/16". Slim, traditional mortise lockset with skeleton key lock from both
No fasteners required. Available in white or black finish. sides. Door thickness 3/4" to 1-3/4", backset 1". Faceplate dimen-
INCLUDES key lock on exterior with sliding lock button on inte- sions: 4-1/4" L x 1" W. Works with both inward and outward door
rior side of lock. Spacer available for 3/8" door thickness — openings. Set INCLUDES lock, handles, escutcheon, striker plate
Special Order Only. and two keys. Both are made of chrome brass.
No. Each Color Std. Pkg. No. Each Fits Door Opening
Left-Handed
5621 $74.45 White 10 7312 $256.30 Right-Handed
Black
LOCK SETS MS Compact Door Lock Traditional Mortise Flush Sliding Door
5625
71.80
10
7322
155.35
Lock Set
Lock Set
Button Locking
Key Locking
FIG 9402
FIG 9553
Swinging door latch FIG 9413
features a simple yet
graceful design. This Mark II alu-
Works well on doors Small, locking, tra- minum flush slid-
between 19mm and ditional mortise ing door lockset
32mm (3/4" and 1- door latch with provides 4"-6"
1/4") thickness. This sliding lock button wider door open-
lock is constructed from inside. Door ings. Can always be opened from the
with marine grade materials, which con- thickness 3/4" to inside, and with an extra security
sist of stainless steel and brass to protect 1-9/16", backset 1-3/16". Faceplate advantage that you can't lock yourself
against corrosion. INCLUDES an override dimensions: 4-1/4" L x 1" W. Set out. Has a cut out size of 4-1/2" D x
system for emergency egress. INCLUDES latch, handles, escutcheon 2-1/2" H. Door thickness: 3/8"-1/2". Made
No. Each Finish and striker plate. Made of chrome brass. of anodized aluminum.
3635U $180.60 Chrome No. Each Fits Door Opening No. Each Fits Door Opening
Strikers Sold Separately – S/O 9523 $136.45 Right- or Left-Handed 7422 $140.75 Right- or Left-Handed
Traditional Mortise Offshore Flush-Mounted
What is the
Door Latch "Backset"? Door Lock
A B
Non-Locking The distance Turn-Knob Locking
between the
edge of the
door (A) and
the center of
the shaft (B). FIG 9552
FIG 9411
Flush-mounted lock.
The M/S offshore lock
Small, traditional Handing Chart is designed for a quick
mortise door latch. and easy installation.
Door thickness 3/4" The cutout is all the
to 1-9/16", backset way thru: 4" H x 1-5/8" D. Lock is
1-3/16". Faceplate equipped with an inside privacy turn
dimensions: 4-1/4" L x 1" W. Set IN - knob and handles on both sides. Door
CLUDES latch, handles, escut cheon and thickness: 1/2"-19/32". Made of
striker plate. Made of chrome brass. anodized aluminum.
No. Each Fits Door Opening No. Each Fits Door Opening
9522 $110.70 Right- or Left-Handed 82111 $128.85 Right Hand Out
