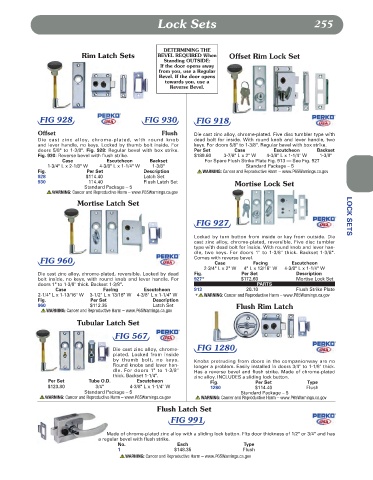

Page 256 - Lewis

Lock Sets 255

DETERMINING THE
Rim Latch Sets BEVEL REQUIRED When Offset Rim Lock Set
Standing OUTSIDE:
If the door opens away
from you, use a Regular
Bevel. If the door opens
towards you, use a
Reverse Bevel.

FIG 928 FIG 930 FIG 918

Offset Flush Die cast zinc alloy, chrome-plated. Five disc tumbler type with
Die cast zinc alloy, chrome-plated, with round knob dead bolt for inside. With round knob and lever handle, two
and lever handle, no keys. Locked by thumb bolt inside. For keys. For doors 5/8" to 1-3/8". Regular bevel with box strike.
doors 5/8" to 1-3/8". Fig. 928: Regular bevel with box strike. Per Set Case Escutcheon Backset
Fig. 930: Reverse bevel with flush strike. $189.60 3-7/8" L x 2" W 4-3/8" L x 1-1/4" W 1-3/8"
Case Escutcheon Backset For Spare Flush Strike Plate Fig. 913 — See Fig. 927
1-3/4" L x 2-1/8" W 4-3/8" L x 1-1/4" W 1-3/8" Standard Package – 5
Fig. Per Set Description WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
928 $114.40 Latch Set
930 114.40 Flush Latch Set Mortise Lock Set
Standard Package – 5
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Mortise Latch Set

FIG 927 LOCK SETS

Locked by turn button from inside or key from outside. Die
cast zinc alloy, chrome-plated, reversible. Five disc tumbler
type with dead bolt for inside. With round knob and lever han-
dle, two keys. For doors 1" to 1-3/8" thick. Backset 1-3/8".
FIG 960 Comes with reverse bevel. Facing Escutcheon
Case
2-3/4" L x 2" W 4" L x 13/16" W 4-3/8" L x 1-1/4" W
Die cast zinc alloy, chrome-plated, reversible. Locked by dead Fig. Per Set Description
bolt inside, no keys, with round knob and lever handle. For 927* $172.60 Mortise Lock Set
doors 1" to 1-3/8" thick. Backset 1-3/8". PARTS
Case Facing Escutcheon 913 20.10 Flush Strike Plate
2-1/4" L x 1-13/16" W 3-1/2" L x 13/16" W 4-3/8" L x 1-1/4" W * WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fig. Per Set Description
960 $112.35 Latch Set Flush Rim Latch
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Tubular Latch Set
FIG 567

Die cast zinc alloy, chrome- FIG 1280
plated. Locked from inside
by thumb bolt, no keys. Knobs protruding from doors in the companionway are no
Round knobs and lever han- longer a problem. Easily installed in doors 3/4" to 1-1/8" thick.
dle. For doors 1" to 1-3/8" Has a reverse bevel and flush strike. Made of chrome-plated
thick. Backset 1-1/4". zinc alloy. INCLUDES a sliding lock button.
Per Set Tube O.D. Escutcheon Fig. Per Set Type
$123.80 3/4" 4-3/8" L x 1-1/4" W 1280 $114.40 Flush
Standard Package – 5 Standard Package – 5
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Flush Latch Set
FIG 991

Made of chrome-plated zinc alloy with a sliding lock button. Fits door thickness of 1/2" or 3/4" and has
a regular bevel with flush strike.
No. Each Type
1 $148.35 Flush
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
