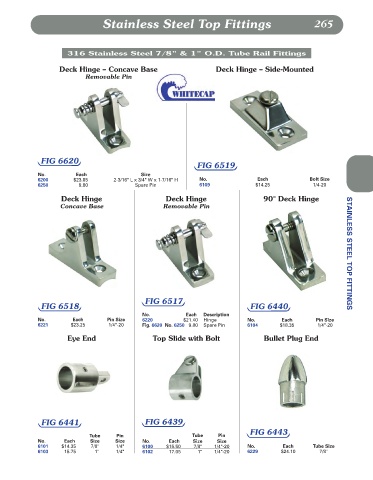

Stainless Steel Top Fittings 265

316 Stainless Steel 7/8" & 1" O.D. Tube Rail Fittings

Deck Hinge – Concave Base Deck Hinge – Side-Mounted
Removable Pin

FIG 6620
FIG 6519
No. Each Size
6200 $23.05 2-3/16" L x 3/4" W x 1-7/16" H No. Each Bolt Size
6250 9.80 Spare Pin 6109 $14.25 1/4-20
Deck Hinge Deck Hinge 90° Deck Hinge
Concave Base Removable Pin STAINLESS STEEL TOP FITTINGS

FIG 6517
FIG 6518 FIG 6440
No. Each Description
No. Each Pin Size 6220 $21.40 Hinge No. Each Pin Size
6221 $23.25 1/4"-20 Fig. 6620 No. 6250 9.80 Spare Pin 6104 $18.35 1/4"-20

Eye End Top Slide with Bolt Bullet Plug End

FIG 6441 FIG 6439
FIG 6443
Tube Pin Tube Pin
No. Each Size Size No. Each Size Size
6101 $14.35 7/8" 1/4" 6100 $15.50 7/8" 1/4"-20 No. Each Tube Size
6103 15.75 1" 1/4" 6102 17.05 1" 1/4"-20 6229 $24.10 7/8"
