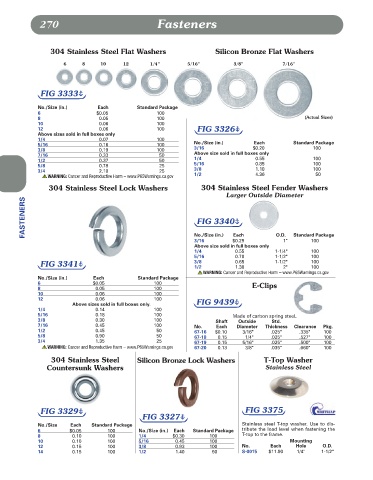

270 Fasteners

304 Stainless Steel Flat Washers Silicon Bronze Flat Washers

6 8 10 12 1/4" 5/16" 3/8" 7/16"

FIG 3333b

No./Size (in.) Each Standard Package
6 $0.05 100
8 0.05 100 (Actual Sizes)
10 0.06 100
12 0.06 100 FIG 3326b
Above sizes sold in full boxes only
1/4 0.07 100
5/16 0.16 100 No./Size (in.) Each Standard Package
3/8 0.19 100 3/16 $0.20 100
7/16 0.33 50 Above size sold in full boxes only
1/2 0.37 50 1/4 0.55 100
5/8 0.78 25 5/16 0.85 100
3/4 2.10 25 3/8 1.10 100
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 1/2 4.36 50
304 Stainless Steel Lock Washers 304 Stainless Steel Fender Washers
Larger Outside Diameter
FASTENERS FIG 3340b

No./Size (in.)
Each
1"
3/16 $0.29 O.D. Standard Package
100
Above size sold in full boxes only
1/4 0.55 1-1/4" 100
5/16 0.70 1-1/2" 100
FIG 3341b 3/8 0.65 1-1/2" 100
1/2 1.30 2" 100
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
No./Size (in.) Each Standard Package
6 $0.05 100 E-Clips
8 0.05 100
10 0.06 100
12 0.06 100
Above sizes sold in full boxes only. FIG 9439b
1/4 0.14 100
5/16 0.18 100 Made of carbon spring steel.
3/8 0.30 100 Shaft Outside Std.
7/16 0.45 100 No. Each Diameter Thickness Clearance Pkg.
1/2 0.45 50 67-16 $0.10 3/16" .025" .335" 100
5/8 0.90 50 67-18 0.15 1/4" .025" .527" 100
3/4 1.35 25 67-19 0.15 5/16" .025" .500" 100
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov 67-20 0.13 3/8" .035" .660" 100
304 Stainless Steel Silicon Bronze Lock Washers T-Top Washer
Countersunk Washers Stainless Steel

FIG 3329b FIG 3375
FIG 3327b
No./Size Each Standard Package Stainless steel T-top washer. Use to dis-
6 $0.05 100 No./Size (in.) Each Standard Package tribute the load level when fastening the
8 0.10 100 1/4 $0.30 100 T-top to the frame.
10 0.10 100 5/16 0.45 100 Mounting
12 0.15 100 3/8 0.93 100 No. Each Hole O.D.
14 0.15 100 1/2 1.40 50 S-0015 $11.90 1/4" 1-1/2"
