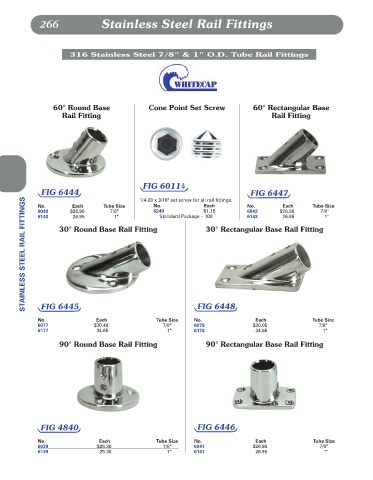

266 Stainless Steel Rail Fittings
316 Stainless Steel 7/8" & 1" O.D. Tube Rail Fittings
60° Round Base Cone Point Set Screw 60° Rectangular Base
Rail Fitting Rail Fitting
FIG 6011b
FIG 6444 FIG 6447
STAINLESS STEEL RAIL FITTINGS
1/4-28 x 3/16" set screw for all rail fittings.
No. Each Tube Size No. Each No. Each Tube Size
6040 $26.90 7/8" 6249 $1.15 6042 $26.90 7/8"
6140 26.95 1" Standard Package – 100 6142 26.95 1"
30° Round Base Rail Fitting 30° Rectangular Base Rail Fitting
FIG 6445 FIG 6448
No. Each Tube Size No. Each Tube Size
6077 $30.40 7/8" 6078 $30.05 7/8"
6177 34.65 1" 6178 34.65 1"
90° Round Base Rail Fitting 90° Rectangular Base Rail Fitting
FIG 4840 FIG 6446
No. Each Tube Size No. Each Tube Size
6039 $25.30 7/8" 6041 $26.90 7/8"
6139 25.30 1" 6141 26.95 1"
