300 Impeller Guide

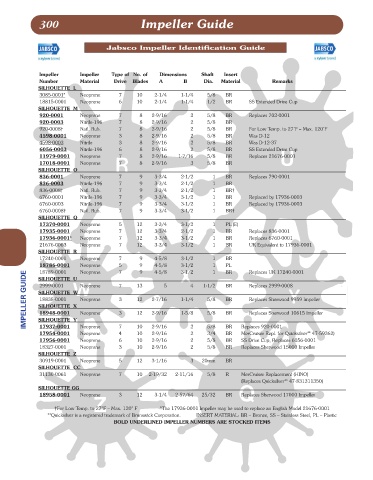

Jabsco Impeller Identification Guide

Impeller Impeller Type of No. of Dimensions Shaft Insert
Number Material Drive Blades A B Dia. Material Remarks
SILHOUETTE L
3085-0001* Neoprene 7 10 2-1/4 1-1/4 5/8 BR
18815-0001 Neoprene 6 10 2-1/4 1-1/4 1/2 BR SS Extended Drive Cup
SILHOUETTE M
920-0001 Neoprene 7 8 2-9/16 2 5/8 BR Replaces 702-0001
920-0003 Nitrile-196 7 8 2-9/16 2 5/8 BR
920-0008† Natl. Rub. 7 8 2-9/16 2 5/8 BR For Low Temp. to 27˚F – Max. 120˚F
4598-0001 Neoprene 3 8 2-9/16 2 5/8 BR Was D-12
4598-0003 Nitrile 3 8 2-9/16 2 5/8 BR Was D-12-37
6056-0003 Nitrile-196 6 8 2-9/16 2 5/8 BR SS Extended Drive Cup
11979-0001 Neoprene 7 8 2-9/16 1-7/16 5/8 BR Replaces 21676-0001
17018-0001 Neoprene 7 8 2-9/16 3 5/8 BR
SILHOUETTE O
836-0001 Neoprene 7 9 3-3/4 2-1/2 1 BR Replaces 790-0001
836-0003 Nitrile-196 7 9 3-3/4 2-1/2 1 BR
836-0008† Natl. Rub. 7 9 3-3/4 2-1/2 1 BR†
6760-0001 Nitrile-196 7 9 3-3/4 3-1/2 1 BR Replaced by 17936-0003
6760-0003 Nitrile-196 7 9 3-3/4 3-1/2 1 BR Replaced by 17936-0003
6760-0008† Natl. Rub. 7 9 3-3/4 3-1/2 1 BR†
SILHOUETTE Q
17370-0001 Neoprene 5 12 3-3/4 3-1/2 1 PL (E)
17935-0001 Neoprene 7 12 3-3/4 2-1/2 1 BR Replaces 836-0001
17936-0001* Neoprene 7 12 3-3/4 3-1/2 1 BR Replaces 6760-0001
21676-0003 Neoprene 7 12 3-3/4 3-1/2 1 BR UK Equivalent to 17936-0001
SILHOUETTE R
17240-0001 Neoprene 7 9 4-5/8 3-1/2 1 BR
18786-0001 Neoprene 5 9 4-5/8 3-1/2 1 PL Replaces UK 17240-0001
Neoprene
IMPELLER GUIDE SILHOUETTE W Neoprene 7 13 2-7/16 1-1/4 1-1/2 BR Replaces 2999-0008
BR
1
4-5/8
3-1/2
7
9
18789-0001
SILHOUETTE U
2999-0001
5
4
Neoprene
5/8
3
BR
12
18838-0001
Replaces Sherwood 9959 Impeller
SILHOUETTE X
Replaces Sherwood 10615 Impeller
12
BR
18948-0001
1-5/8
2-9/16
3
5/8
Neoprene
SILHOUETTE Y
17937-0001
MerCruiser Repl. for Quicksilver** 47-59362)
4
Neoprene
BR
2
10
2-9/16
3/4
17954-0001 Neoprene 7 10 2-9/16 2 5/8 BR Replaces 920-0001
17956-0001 Neoprene 6 10 2-9/16 2 5/8 BR SS Drive Cup, Replaces 6056-0001
18327-0001 Neoprene 3 10 2-9/16 2 5/8 BR Replaces Sherwood 15000 Impeller
SILHOUETTE Z
30919-0001 Neoprene 5 12 3-1/16 3 20mm BR
SILHOUETTE CC
31130-0061 Neoprene 7 10 2-19/32 2-11/16 5/8 R MerCruiser Replacement (HINO)
(Replaces Quicksilver** 47-831311350)
SILHOUETTE GG
18958-0001 Neoprene 3 12 3-1/4 2-57/64 25/32 BR Replaces Sherwood 17000 Impeller
†For Low Temp. to 27°F – Max. 120° F *The 17936-0001 Impeller may be used to replace an English Model 21676-0001
**Quicksilver is a registered trademark of Brunswick Corporation. INSERT MATERIAL: BR – Bronze, SS – Stainless Steel, PL – Plastic
BOLD UNDERLINED IMPELLER NUMBERS ARE STOCKED ITEMS
