Page 314 - Lewis

Oberdorfer Impellers 313

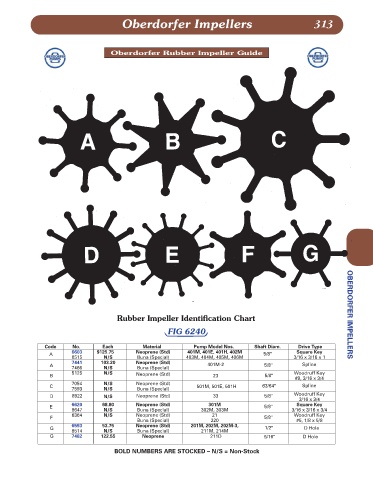

Oberdorfer Rubber Impeller Guide

Rubber Impeller Identification Chart OBERDORFER IMPELLERS

FIG 6240

Code No. Each Material Pump Model Nos. Shaft Diam. Drive Type
6603 $125.75 Neoprene (Std) 401M, 401E, 401H, 402M Square Key
A 5/8"
8515 N/S Buna (Special) 403M, 404M, 405M, 406M 3/16 x 3/16 x 1
7441 103.20 Neoprene (Std)
A 401M-2 5/8" Spline
7466 N/S Buna (Special)
5125 N/S Neoprene (Std) Woodruff Key
B 23 5/8"
#9, 3/16 x 3/4
7054 N/S Neoprene (Std)
C 501M, 501E, 501H 63/64" Spline
7593 N/S Buna (Special)
D 8922 N/S Neoprene (Std) 33 5/8" Woodruff Key
3/16 x 3/4
6620 68.80 Neoprene (Std) 301M Square Key
E 5/8"
8647 N/S Buna (Special) 302M, 303M 3/16 x 3/16 x 3/4
6364 N/S Neoprene (Std) 21 Woodruff Key
F 5/8"
Buna (Special) 220 #5, 1/8 x 5/8
6593 53.75 Neoprene (Std) 201M, 202M, 202M-3,
G 1/2" D Hole
8514 N/S Buna (Special) 211M, 214M
G 7482 122.55 Neoprene 211D 5/16" D Hole
BOLD NUMBERS ARE STOCKED – N/S = Non-Stock
