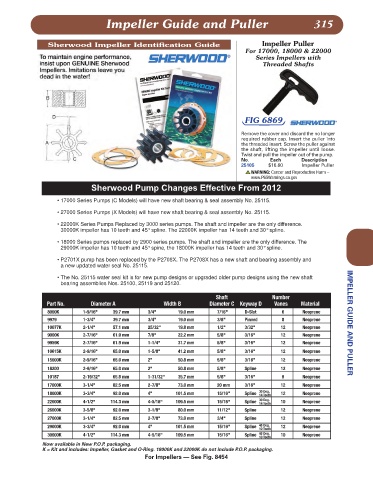

Impeller Guide and Puller 315

Sherwood Impeller Identification Guide Impeller Puller
For 17000, 18000 & 22000
Series Impellers with
Threaded Shafts

FIG 6869

Remove the cover and discard the no longer
required rubber cap. Insert the puller into
the threaded insert. Screw the puller against
the shaft, lifting the impeller until loose.
Twist and pull the impeller out of the pump.
No. Each Description
25105 $16.60 Impeller Puller
WARNING: Cancer and Reproductive Harm –
www.P65Warnings.ca.gov
Sherwood Pump Changes Effective From 2012

• 17000 Series Pumps (C Models) will have new shaft bearing & seal assembly No. 25115.
• 27000 Series Pumps (X Models) will have new shaft bearing & seal assembly No. 25115.

• 22000K Series Pumps Replaced by 3000 series pumps. The shaft and impeller are the only difference.
30000K impeller has 10 teeth and 45° spline. The 22000K impeller has 14 teeth and 30° spline.

• 18000 Series pumps replaced by 2900 series pumps. The shaft and impeller are the only difference. The
29000K impeller has 10 teeth and 45° spine, the 18000K impeller has 14 teeth and 30° spline.
• P2701X pump has been replaced by the P2708X. The P2708X has a new shaft and bearing assembly and
a new updated water seal No. 25115.
• The No. 25115 water seal kit is for new pump designs or upgraded older pump designs using the new shaft
bearing assemblies Nos. 25100, 25119 and 25120.

Shaft Number
Part No. Diameter A Width B Diameter C Keyway D Vanes Material
8000K 1-9/16" 39.7 mm 3/4" 19.0 mm 7/16" D-Slot 6 Neoprene
9979 1-3/4" 39.7 mm 3/4" 19.0 mm 3/8" Pinned 8 Neoprene
10077K 2-1/4" 57.1 mm 25/32" 19.8 mm 1/2" 3/32" 12 Neoprene IMPELLER GUIDE AND PULLER
9000K 2-7/16" 61.9 mm 7/8" 22.2 mm 5/8" 3/16" 12 Neoprene
9959K 2-7/16" 61.9 mm 1-1/4" 31.7 mm 5/8" 3/16" 12 Neoprene
10615K 2-9/16" 65.0 mm 1-5/8" 41.2 mm 5/8" 3/16" 12 Neoprene
15000K 2-9/16" 65.0 mm 2" 50.8 mm 5/8" 3/16" 12 Neoprene
18200 2-9/16" 65.0 mm 2" 50.8 mm 5/8" Spline 12 Neoprene
10187 2-19/32" 65.8 mm 1-31/32" 35.7 mm 5/8" 3/16" 9 Neoprene
17000K 3-1/4" 82.5 mm 2-7/8" 73.0 mm 20 mm 3/16" 12 Neoprene
18000K 3-3/4" 92.0 mm 4" 101.5 mm 15/16" Spline 30 Deg. 12 Neoprene
14 Tooth
22000K 4-1/2" 114.3 mm 4-5/16" 109.5 mm 15/16" Spline 30 Deg. 10 Neoprene
14 Tooth
26000K 3-5/8" 92.0 mm 3-1/8" 80.0 mm 11/12" Spline 12 Neoprene
27000K 3-1/4" 82.5 mm 2-7/8" 73.0 mm 3/4" Spline 12 Neoprene
29000K 3-3/4" 92.0 mm 4" 101.5 mm 15/16" Spline 45 Deg. 12 Neoprene
10 Tooth
30000K 4-1/2" 114.3 mm 4-5/16" 109.5 mm 15/16" Spline 45 Deg. 10 Neoprene
10 Tooth
Now available in New P.O.P. packaging.
K = Kit and includes: Impeller, Gasket and O-Ring. 18000K and 22000K do not include P.O.P. packaging.
For Impellers — See Fig. 8454
