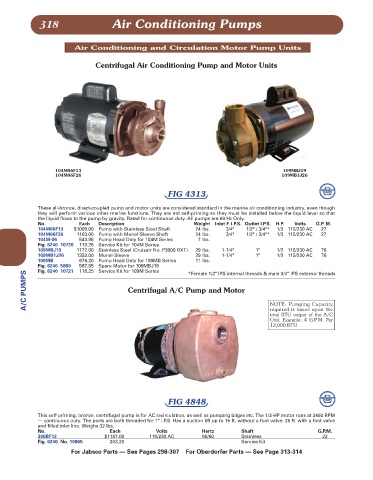

318 Air Conditioning Pumps

Air Conditioning and Circulation Motor Pump Units

Centrifugal Air Conditioning Pump and Motor Units

104M06F13 109MBJ19
104M06F26 109MB1J26

FIG 4313

These all-bronze, direct-coupled pump and motor units are considered standard in the marine air conditioning industry, even though
they will perform various other marine functions. They are not self-priming so they must be installed below the liquid level so that
the liquid flows to the pump by gravity. Rated for continuous duty. All pumps are 60 Hz Only.
No. Each Description Weight Inlet F. I.P.S. Outlet I.P.S. H.P. Volts G.P. M.
104M06F13 $1009.00 Pump with Stainless Steel Shaft 24 lbs. 3/4" 1/2" / 3/4"* 1/3 115/230 AC 27
104M06F26 1163.00 Pump with Monel-Sleeve Shaft 24 lbs. 3/4" 1/2" / 3/4"* 1/3 115/230 AC 27
104M-06 543.95 Pump Head Only for 104M Series 7 lbs.
Fig. 6240 10720 118.25 Service Kit for 104M Series
109MBJ19 1172.00 Stainless Steel (Cruisair No. P3000 BXT) 29 lbs. 1-1/4" 1" 1/2 115/230 AC 76
109MB1J26 1353.00 Monel-Sleeve 29 lbs. 1-1/4" 1" 1/2 115/230 AC 76
109MB 676.20 Pump Head Only for 109MB Series 11 lbs.
Fig. 6240 5860 567.85 Spare Motor for 109MBJ19 *Female 1/2" IPS internal threads & male 3/4" IPS external threads
Service Kit for 109M Series
118.25
Fig. 6240 10721
A/C PUMPS Centrifugal A/C Pump and Motor

NOTE: Pumping Capacity
required is based upon the
total BTU output of the A/C
Unit. Example: 4 G.P.M. Per
12,000 BTU.

FIG 4848

This self-priming, bronze, centrifugal pump is for AC recirculation, as well as pumping bilges etc. The 1/3-HP motor runs at 3450 RPM
— continuous duty. The ports are both threaded for 1" I.P.S. Has a suction lift up to 15 ft. without a foot valve; 25 ft. with a foot valve
and filled inlet line. Weighs 32 lbs.
No. Each Volts Hertz Shaft G.P.M.
300BF13 $1167.00 115/230 AC 50/60 Stainless 22
Fig. 6240 No. 10865 203.20 Service Kit
For Jabsco Parts — See Pages 298-307 For Oberdorfer Parts — See Page 313-314
