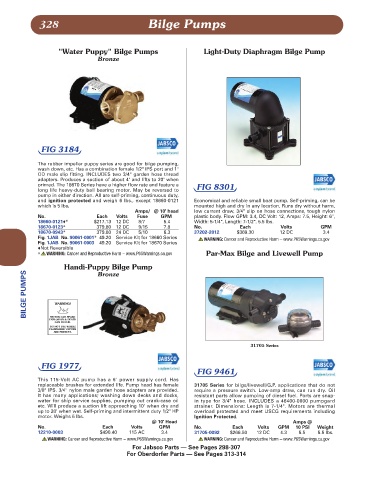

328 Bilge Pumps

"Water Puppy" Bilge Pumps Light-Duty Diaphragm Bilge Pump
Bronze

FIG 3184

The rubber impeller puppy series are good for bilge pumping,
wash down, etc. Has a combination female 1/2" IPS port and 1"
OD male slip fitting. INCLUDES two 3/4" garden hose thread
adapters. Produces a suction of about 4' and lifts to 20' when
primed. The 18670 Series have a higher flow rate and feature a FIG 8301
long life heavy-duty ball bearing motor. May be reversed to
pump in either direction. All are self-priming, continuous duty,
and ignition protected and weigh 6 lbs., except 18660-0121 Economical and reliable small boat pump. Self-priming, can be
which is 5 lbs. mounted high and dry in any location. Runs dry without harm,
Amps/ @ 10' head low current draw, 3/4" slip on hose connections, tough nylon
No. Each Volts Fuse GPM plastic body. Flow GPM: 3.4, DC Volt: 12, Amps: 7.5, Height: 6",
18660-0121©* $217.13 12 DC 8/7 5.4 Width: 5-1/4", Length: 7-1/2". 5.5 lbs.
18670-0123* 379.80 12 DC 9/15 7.8 No. Each Volts GPM
18670-0943* 379.80 24 DC 5/10 6.3 37202-2012 $369.30 12 DC 3.4
Fig. 1JAB No. 90061-0001* 49.20 Service Kit for 18660 Series
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Fig. 1JAB No. 90061-0003 49.20 Service Kit for 18670 Series
©Not Reversible
* WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Par-Max Bilge and Livewell Pump
Handi-Puppy Bilge Pump
BILGE PUMPS WARNING!
Bronze

MOTOR CAN SPARK
EXPLOSION & DEATH
CAN OCCUR.
DO NOT USE WHERE
FLAMMABLE VAPORS
ARE PRESENT.
31705 Series

FIG 1977
FIG 9461
This 115-Volt AC pump has a 6' power supply cord. Has
replaceable brushes for extended life. Pump head has female 31705 Series for bilge/livewell/G.P. applications that do not
3/8" IPS. 3/4" nylon male garden hose adapters are provided. require a pressure switch. Low-amp draw, can run dry. Oil
It has many applications; washing down decks and docks, resistant parts allow pumping of diesel fuel. Ports are snap-
water for ship service supplies, pumping out crank-case oil in type for 3/4" hose. INCLUDES a 46400-0000 pumpgard
etc. Will produce a suction lift approaching 10' when dry and strainer. Dimensions: Length is 7-1/4". Motors are thermal
up to 20' when wet. Self-priming and intermittent duty 1/2" HP overload protected and meet USCG requirements including
motor. Weighs 5 lbs. Ignition Protected.
@ 10' Head Amps @
No. Each Volts GPM No. Each Volts GPM 10 PSI Weight
12210-0003 $490.40 115 AC 3.4 31705-0092 $266.50 12 DC 4.3 5.5 5.5 lbs.
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For Jabsco Parts — See Pages 298-307
For Oberdorfer Parts — See Pages 313-314
