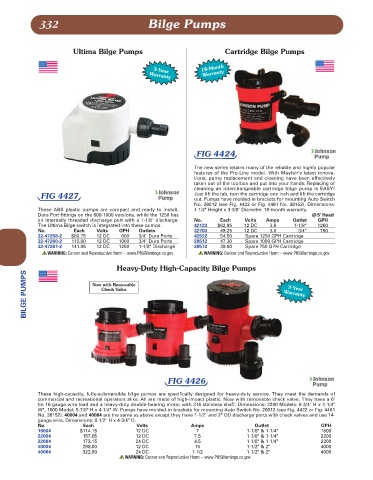

Page 333 - Lewis

332 Bilge Pumps

Ultima Bilge Pumps Cartridge Bilge Pumps

18-Month
Warranty
3-Year
Warranty

FIG 4424

The new series retains many of the reliable and highly popular
features of the Pro-Line model. With Mayfair's latest innova-
tions, pump replacement and cleaning have been effectively
taken out of the toolbox and put into your hands. Replacing or
cleaning an interchangeable cartridge bilge pump is EASY!
FIG 4427 Just lift the tab, turn the cartridge one inch and lift the cartridge
out. Pumps have molded-in brackets for mounting Auto Switch
No. 26012 (see Fig. 4422 or Fig. 4461 No. 36152). Dimensions:
These ABS plastic pumps are compact and ready to install, 4-1/2" Height x 3-3/8" Diameter. 18-month warranty.
Dura Port fittings on the 600-1000 versions, while the 1250 has @ 5' Head
an internally threaded discharge port with a 1-1/8" discharge. No. Each Volts Amps Outlet GPH
The Ultima Bilge switch is integrated into these pumps. 42123 $62.95 12 DC 3.5 1-1/8" 1250
No. Each Volts GPH Outlets 32703 49.25 12 DC 3.0 3/4" 750
32-47258-2 $80.75 12 DC 600 3/4" Dura Ports 42522 54.50 Spare 1250 GPH Cartridge
32-47260-2 115.90 12 DC 1000 3/4" Dura Ports 28512 47.30 Spare 1000 GPH Cartridge
32-47261-2 141.95 12 DC 1250 1-1/8" Discharge 28572 39.80 Spare 750 GPH Cartridge
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Heavy-Duty High-Capacity Bilge Pumps
BILGE PUMPS Now with Removable Warranty

3-Year
Check Valve

FIG 4426

These high-capacity, fully-submersible bilge pumps are specifically designed for heavy-duty service. They meet the demands of
commercial and recreational operators alike. All are made of high-impact plastic. Now with removable check valve. They have a 6'
tin 16-gauge wire lead and a heavy-duty double-bearing motor with 316 stainless shaft. Dimensions: 2200 Models: 6-3/4" H x 4-1/4"
W", 1600 Model: 5-7/8" H x 4-1/4" W. Pumps have molded-in brackets for mounting Auto Switch No. 26012 (see Fig. 4422 or Fig. 4461
No. 36152). 40004 and 40084 are the same as above except they have 1-1/2" and 2" OD discharge ports with check valves and use 14-
gauge wire. Dimensions: 8-1/2" H x 4-3/4" D.
No. Each Volts Amps Outlet GPH
16004 $114.15 12 DC 7 1-1/8" & 1-1/4" 1600
22004 157.05 12 DC 7.5 1-1/8" & 1-1/4" 2200
22084 173.15 24 DC 4.5 1-1/8" & 1-1/4" 2200
40004 298.00 12 DC 15 1-1/2" & 2" 4000
40084 322.90 24 DC 7-1/2 1-1/2" & 2" 4000
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
