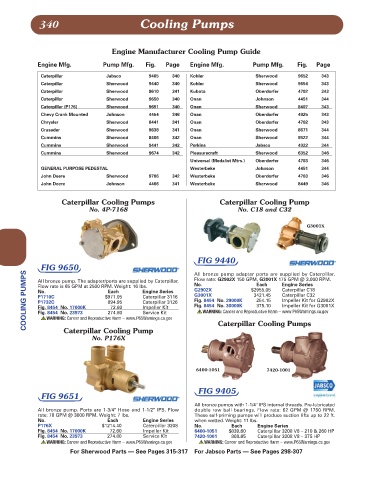

340 Cooling Pumps

Engine Manufacturer Cooling Pump Guide

Engine Mfg. Pump Mfg. Fig. Page Engine Mfg. Pump Mfg. Fig. Page

Caterpillar Jabsco 9405 340 Kohler Sherwood 9652 343
Caterpillar Sherwood 9440 340 Kohler Sherwood 9654 343
Caterpillar Sherwood 9610 341 Kubota Oberdorfer 4702 343
Caterpillar Sherwood 9650 340 Onan Johnson 4451 344
Caterpillar (P176) Sherwood 9651 340 Onan Sherwood 8407 343
Chevy Crank Mounted Johnson 4454 346 Onan Oberdorfer 4925 343
Chrysler Sherwood 8441 341 Onan Oberdorfer 4702 343
Crusader Sherwood 9838 341 Onan Sherwood 8671 344
Cummins Sherwood 8406 342 Onan Sherwood 9522 344
Cummins Sherwood 9441 342 Perkins Jabsco 4922 344
Cummins Sherwood 9674 342 Pleasurecraft Sherwood 6352 346
Universal (Medalist Mtrs.) Oberdorfer 4703 346
GENERAL PURPOSE PEDESTAL Westerbeke Johnson 4451 344
John Deere Sherwood 9706 342 Westerbeke Oberdorfer 4703 346
John Deere Johnson 4466 341 Westerbeke Sherwood 8449 346

Caterpillar Cooling Pumps Caterpillar Cooling Pump
No. 4P-7168 No. C18 and C32

G3001X

FIG 9440
FIG 9650 All bronze pump adapter ports are supplied by Caterpillar.
COOLING PUMPS Flow rate is 65 GPM at 2500 RPM. Weight: 16 lbs. No. WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Flow rate: G2902X 150 GPM, G3001X 175 GPM @ 3,000 RPM.
All bronze pump. The adapter/ports are supplied by Caterpillar.
Each
Engine Series
Caterpillar C18
G2902X
$2955.05
Each
No.
Engine Series
G3001X
3421.45
Caterpillar C32
Caterpillar 3116
$971.05
P1710C
254.15
Impeller Kit for G2902X
Fig. 8454 No. 29000K
Caterpillar 3126
894.95
P1732C
Impeller Kit for G3001X
Fig. 8454 No. 30000K
375.10
Fig. 8454 No. 17000K
Impeller Kit
72.60
Fig. 8454 No. 23973
274.80
Service Kit
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Caterpillar Cooling Pump
No. P176X Caterpillar Cooling Pumps
6400-1051 7420-1001
FIG 9405
FIG 9651
All bronze pumps with 1-1/4" IPS internal threads. Pre-lubricated
All bronze pump. Ports are 1-3/4" Hose and 1-1/2" IPS. Flow double row ball bearings. Flow rate: 62 GPM @ 1750 RPM.
rate: 70 GPM @ 3000 RPM. Weight: 7 lbs. These self-priming pumps will produce suction lifts up to 22 ft.
No. Each Engine Series when wetted. Weight: 11 lbs.
P176X $1214.40 Caterpillar 3208 No. Each Engine Series
Fig. 8454 No. 17000K 72.60 Impeller Kit 6400-1051 $839.60 Caterpillar 3208 V8 – 210 & 260 HP
Fig. 8454 No. 23973 274.80 Service Kit 7420-1001 808.65 Caterpillar 3208 V8 – 375 HP
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
For Sherwood Parts — See Pages 315-317 For Jabsco Parts — See Pages 298-307
