Page 337 - Lewis

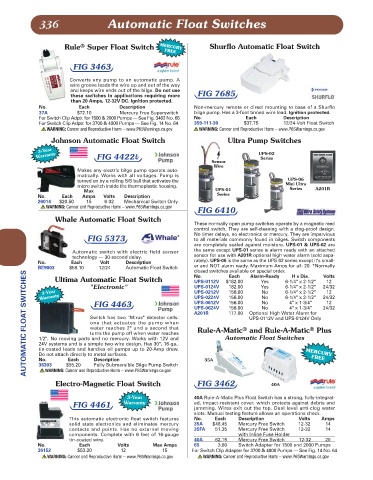

336 Automatic Float Switches

®
Rule Super Float Switch MERCURY Shurflo Automatic Float Switch
FREE

FIG 3463
Converts any pump to an automatic pump. A
wire groove leads the wire up and out of the way
and keeps wire ends out of the bilge. Do not use
these switches in applications requiring more FIG 7685
than 20 Amps, 12-32V DC. Ignition protected.
No. Each Description Non-mercury remote or direct mounting to base of a Shurflo
37A $72.10 Mercury Free Superswitch bilge pump. Has a 3-foot tinned wire lead. Ignition protected.
For Switch Clip Adptr. for 1500 & 2000 Pumps — See Fig. 3462 No. 65 No. Each Description
For Switch Clip Adptr. for 3700 & 4000 Pumps — See Fig. 14 No. 64 359-111-30 $37.75 12/24-Volt Float Switch
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Johnson Automatic Float Switch Ultra Pump Switches
3-Year
Warranty FIG 4422b UPS-02
Series
Sensor
Wire
Makes any electric bilge pump operate auto-
matically. Works with all voltages. Pump is
turned on by a rolling S/S ball that activates the UPS-06
micro switch inside the thermoplastic housing. Mini Ultra A201R
Series
Max UPS-01
No. Each Amps Volts Description Series
26014 $20.50 15 6-32 Mechanical Switch Only
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
FIG 6410
Whale Automatic Float Switch
These normally open pump switches operate by a magnetic reed
control switch. They are self-cleaning with a clog-proof design.
No timer delays, no electronics or mercury. They are impervious
FIG 5373 to all materials commonly found in bilges. Switch components
are completely sealed against moisture. UPS-01 & UPS-02 are
Automatic switch with electric field sensor the same except UPS-01 series is alarm ready with an attached
technology — 30-second delay. sensor for use with A201R optional high water alarm (sold sepa-
No. Each Volt Description rately). UPS-06 is the same as the UPS-02 series except it's small-
BE9003 $58.10 12/24 Automatic Float Switch er and NOT alarm ready. Maximum Amps for all: 20. *Normally
closed switches available on special order.
AUTOMATIC FLOAT SWITCHES
No. Each Alarm-Ready H x Dia. Volts
Ultima Automatic Float Switch UPS-0112V $182.00 Yes 6-1/4" x 2-1/2" 12
"Electronic" UPS-0124V 182.00 Yes 6-1/4" x 2-1/2" 24/32
3-Year UPS-0212V 156.00 No 6-1/4" x 2-1/2" 12
Warranty UPS-0224V 156.00 No 6-1/4" x 2-1/2" 24/32
FIG 4463 UPS-0612V 156.00 No 4" x 1-3/4" 12
UPS-0624V 156.00 No 4" x 1-3/4" 24/32
A201R 177.00 Optional High Water Alarm for
Switch has two "Mirus" detector cells: UPS-0112V and UPS-0124V Only
one that actuates the pump when
water reaches 2" and a second that Rule-A-Matic and Rule-A-Matic Plus
®
®
turns the pump off when water reaches
1/2". No moving parts and no mercury. Works with 12V and Automatic Float Switches
24V systems and is a simple two-wire design. Has 30", 16-ga.,
tin-coated leads and handles all pumps up to 20-Amp draw.
Do not attach directly to metal surfaces. MERCURY
FREE
No. Each Description 35A
36303 $55.20 Fully Submersible Bilge Pump Switch
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Electro-Magnetic Float Switch FIG 3462 40A
3-Year 40A Rule-A-Matic Plus Float Switch has a strong, fully-integrat-
FIG 4461 Warranty ed, impact-resistant cover, which protects against debris and
jamming. Wires exit out the top. Dual level anti-clog water
slots. Manual testing feature allows an operations check.
This automatic electronic float switch features No. Each Description Volts Amps
solid state electronics and eliminates mercury 35A $48.45 Mercury Free Switch 12-32 14
contacts and points. Has no external moving 35FA 51.35 Mercury Free Switch 12-32 14
components. Complete with 6 feet of 16-gauge with Inline Fuse Holder
tin-coated wire. 40A 62.15 Mercury Free Switch 12-32 20
No. Each Volts Max Amps 65 3.80 Switch Adapter for 1500 and 2000 Pumps
36152 $53.20 12 15 For Switch Clip Adapter for 3700 & 4000 Pumps — See Fig. 14 No. 64
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
