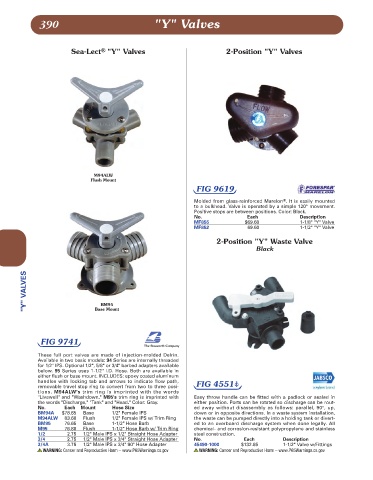

390 "Y" Valves

®
Sea-Lect "Y" Valves 2-Position "Y" Valves

M94ALW
Flush Mount
FIG 9619

Molded from glass-reinforced Marelon ® . It is easily mounted
to a bulkhead. Valve is operated by a simple 120° movement.
Positive stops are between positions. Color: Black.
No. Each Description
MF855 $69.60 1-1/8" "Y" Valve
MF852 69.60 1-1/2" "Y" Valve
2-Position "Y" Waste Valve
Black

"Y" VALVES Base Mount

BM95

FIG 9741
The Bosworth Company
These full port valves are made of injection-molded Delrin.
Avail able in two basic models: 94 Series are internally threaded
for 1/2" IPS. Optional 1/2", 5/8" or 3/4" barbed adapters available
below. 95 Series uses 1-1/2" I.D. Hose. Both are available in
either flush or base mount. INCLUDES: epoxy coated aluminum
handles with locking tab and arrows to indicate flow path,
removable travel stop ring to convert from two to three posi- FIG 4551b
tions. M94ALW's trim ring is imprinted with the words
"Livewell" and "Washdown." M95's trim ring is imprinted with Easy throw handle can be fitted with a padlock or sealed in
the words "Discharge," "Tank" and "Head." Color: Gray. either position. Ports can be rotated so discharge can be rout-
No. Each Mount Hose Size ed away without disassembly as follows: parallel, 90°, up,
BM94A $78.65 Base 1/2" Female IPS down or in opposite directions. In a waste system installation,
M94ALW 83.60 Flush 1/2" Female IPS w/ Trim Ring the waste can be pumped directly into a holding tank or divert-
BM95 76.65 Base 1-1/2" Hose Barb ed to an overboard discharge system when done legally. All
M95 76.80 Flush 1-1/2" Hose Barb w/ Trim Ring chemical- and corrosion-resistant polypropylene and stainless
1/2 2.75 1/2" Male IPS x 1/2" Straight Hose Adapter steel construction.
3/4 2.75 1/2" Male IPS x 3/4" Straight Hose Adapter No. Each Description
3/4A 3.75 1/2" Male IPS x 3/4" 90° Hose Adapter 45490-1000 $132.85 1-1/2" Valve w/Fittings
