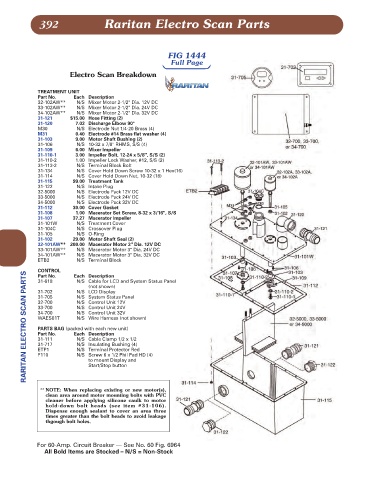

392 Raritan Electro Scan Parts

FIG 1444
Full Page
Electro Scan Breakdown

TREATMENT UNIT
Part No. Each Description
32-102AW** N/S Mixer Motor 2-1/2" Dia. 12V DC
33-102AW** N/S Mixer Motor 2-1/2" Dia. 24V DC
34-102AW** N/S Mixer Motor 2-1/2" Dia. 32V DC
31-121 $15.00 Hose Fitting (2)
31-120 7.03 Discharge Elbow 90°
M30 N/S Electrode Nut 1/4-20 Brass (4)
M31 0.40 Electrode #14 Brass flat washer (4)
31-103 9.00 Motor Shaft Bushing (2)
31-106 N/S 10-32 x 7/8" RHMS, S/S (4)
31-109 6.00 Mixer Impeller
31-110-1 3.00 Impeller Bolt, 12-24 x 5/8", S/S (2)
31-110-2 1.00 Impeller Lock Washer, #12, S/S (2)
31-113-2 N/S Terminal Block Bolt
31-134 N/S Cover Hold Down Screw 10-32 x 1 Hex(16)
31-114 N/S Cover Hold Down Nut, 10-32 (18)
31-115 99.00 Treatment Tank
31-122 N/S Intake Plug
32-5000 N/S Electrode Pack 12V DC
33-5000 N/S Electrode Pack 24V DC
34-5000 N/S Electrode Pack 32V DC
31-112 30.00 Cover Gasket
31-108 1.00 Macerator Set Screw, 8-32 x 3/16", S/S
31-107 37.27 Macerator Impeller
31-101W N/S Treatment Cover
31-104C N/S Crossover Plug
31-105 N/S O-Ring
31-102 29.00 Motor Shaft Seal (2)
32-101AW** 200.00 Macerator Motor 3" Dia. 12V DC
33-101AW** N/S Macerator Motor 3" Dia. 24V DC
34-101AW** N/S Macerator Motor 3" Dia. 32V DC
ETB2 N/S Terminal Block

CONTROL
RARITAN ELECTRO SCAN PARTS
Part No. Each Description
31-618 N/S Cable for LCD and System Status Panel
(not shown)
31-702 N/S LCD Display
31-705 N/S System Status Panel
32-700 N/S Control Unit 12V
33-700 N/S Control Unit 24V
34-700 N/S Control Unit 32V
WAES01T N/S Wire Harness (not shown)
PARTS BAG (packed with each new unit)
Part No. Each Description
31-111 N/S Cable Clamp 1/2 x 1/2
31-717 N/S Insulating Bushing (4)
ETP1 N/S Terminal Protector Red
F110 N/S Screw 6 x 1/2 Phil Pad HD (4)
to mount Display and
Start/Stop button

** NOTE: When replacing existing or new motor(s),
clean area around motor mounting bolts with PVC
cleaner before applying silicone caulk to motor
hold-down bolt heads (see item #31-106).
Dispense enough sealant to cover an area three
times greater than the bolt heads to avoid leakage
thgough bolt holes.

For 60-Amp. Circuit Breaker — See No. 60 Fig. 6964
All Bold Items are Stocked – N/S = Non-Stock
