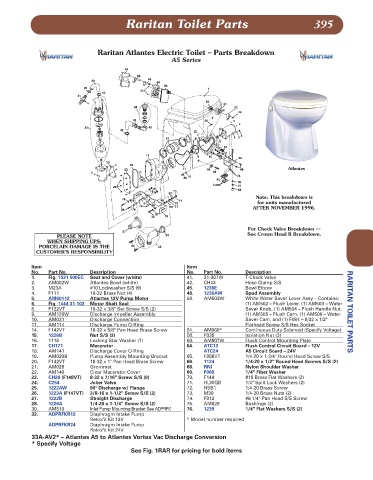

Raritan Atlantes Electric Toilet – Parts Breakdown
A5 Series

Atlantes

Note: This breakdown is
for units manufactured
AFTER NOVEMBER 1996.

For Check Valve Breakdown —
PLEASE NOTE See Crown Head II Breakdown.
WHEN SHIPPING UPS:
PORCELAIN DAMAGE IS THE
CUSTOMER'S RESPONSIBILITY

Item Item
No. Part No. Description No. Part No. Description
1. Fig. 1531 500EC Seat and Cover (white) 41. 31-307W T-Check Valve
2. AM002W Atlantes Bowl (white) 42. CH43 Hose Clamp S/S
3. M23A #10 Lockwasher S/S (9) 45. 1236E Bowl Elbow
4. F111 10-32 Brass Nut (4) 48. 1236AW Spud Assembly
5. AM60112 Atlantes 12V Pump Motor 50. AM503W White Water Saver Lever Assy – Contains:
6. Fig. 1444 31-102 Motor Shaft Seal (1) AM502 – Flush Lever, (1) AM503 – Water
8. F122VT 10-32 x 3/8" Set Screw S/S (2) Saver Knob, (1) AM504 – Flush Handle Nut,
9. AM120W Discharge Impeller Assembly (1) AM505 – Flush Cam, (1) AM506 – Water RARITAN TOILET PARTS
10. AM031 Discharge Connection Saver Cam, and (1) F084 – 8/32 x 1/2"
11. AM114 Discharge Pump O-Ring Flathead Screw S/S Hex Socket
14. F142VT 10-32 x 5/8" Pan Head Brass Screw 54. AM060* Continuous Duty Solenoid (Specify Voltage)
15. 1226B Nut S/S (2) 58. F035 Isolation Nut (3)
16. 1118 Locking Star Washer (7) 60. AM507W Flush Control Mounting Plate
17. CH121 Macerator 64. ATC12 Flush Control Circuit Board – 12V
18. AM141 Discharge Cover O-Ring ATC24 A5 Circuit Board – 24V
19. AM020B Pump Assembly Mounting Bracket 65. F086VT 1/4-20 x 1-3/4" Round Head Screw S/S
20. F142VT 10-32 x 1" Pan Head Brass Screw 66. 1124 1/4-20 x 1/2" Round Head Screws S/S (2)
21. AM026 Grommet 68. RNI Nylon Shoulder Washer
22. AM140 Clear Macerator Cover 69. F069 1/4" Fiber Washer
23. CH26 (F148VT) 8-32 x 7/16" Screw S/S (8) 70. F144 #10 Brass Flat Washers (2)
24. C254 Joker Valve 71. HLWQB 1/4" Split Lock Washers (2)
25. 1222AW 90° Discharge w/ Flange 72. HSB1 1/4-20 Brass Screw
26. 1223A (F147VT) 3/8-16 x 1-1/2" Screw S/S (2) 73. M30 1/4-20 Brass Nuts (2)
27. 1222B Straight Discharge 74. F012 #6 1/4" Pan Head S/S Screw
28. 1226A 1/4-20 x 1-1/4" Screw S/S (2) 75. AM028 Bushings (2)
30. AM510 Inlet Pump Mounting Bracket See ADPRFK 76. 1239 1/4" Flat Washers S/S (2)
33. ADPRFKR12 Diaphragm Intake Pump
Retrofit Kit 12V * Model number required
ADPRFKR24 Diaphragm Intake Pump
Retrofit Kit 24V
33A-AV2* – Atlantes A5 to Atlantes Vortex Vac Discharge Conversion
* Specify Voltage
See Fig. 1RAR for pricing for bold items
