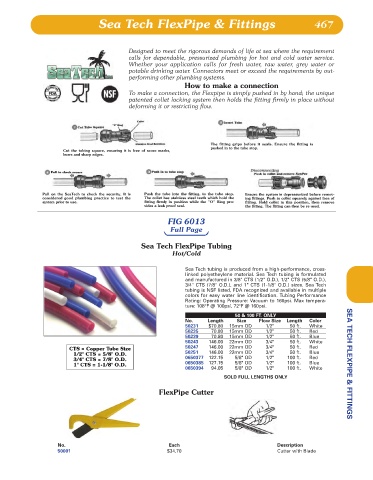

Sea Tech FlexPipe & Fittings 467

Designed to meet the rigorous demands of life at sea where the requirement
calls for dependable, pressurized plumbing for hot and cold water service.
Whether your application calls for fresh water, raw water, grey water or
potable drinking water. Connectors meet or exceed the requirements by out-
performing other plumbing systems.
How to make a connection
To make a connection, the Flexpipe is simply pushed in by hand; the unique
patented collet locking system then holds the fitting firmly in place without
deforming it or restricting flow.

The fitting grips before it seals. Ensure the fitting is
pushed in to the tube stop.
Cut the tubing square, ensuring it is free of score marks,
burrs and sharp edges.

Pull on the SeaTech to check the security. It is Push the tube into the fitting, to the tube stop. Ensure the system is depressurized before remov-
considered good plumbing practice to test the The collet has stainless steel teeth which hold the ing fittings. Push in collet squarely against face of
system prior to use. fitting firmly in position while the "O" Ring pro- fitting. Hold collet in this position, then remove
vides a leak proof seal. the fitting. The fitting can then be re-used.
FIG 6013
Full Page

Sea Tech FlexPipe Tubing
Hot/Cold

Sea Tech tubing is produced from a high-performance, cross-
linked polyetheylene material. Sea Tech tubing is formulated
and manufactured in 3/8" CTS (1/2" O.D.), 1/2" CTS (5/8" O.D.),
3/4" CTS (7/8" O.D.), and 1" CTS (1-1/8" O.D.) sizes. Sea Tech
tubing is NSF listed, FDA recognized and available in multiple
colors for easy water line identification. Tubing Performance
Rating: Operating Pressure: Vacuum to 160psi. Max tempera-
ture: 108°F @ 100psi, 72°F @ 160psi.
50 & 100 FT. ONLY
No. Length Size Flow Size Length Color
50231 $70.80 15mm OD 1/2" 50 ft. White
50235 70.80 15mm OD 1/2" 50 ft. Red
50239 70.80 15mm OD 1/2" 50 ft. Blue
50243 146.00 22mm OD 3/4" 50 ft. White
CTS = Copper Tube Size 50247 146.00 22mm OD 3/4" 50 ft. Red
1/2" CTS = 5/8" O.D. 50251 146.00 22mm OD 3/4" 50 ft. Blue
3/4" CTS = 7/8" O.D. 0650377 122.15 5/8" OD 1/2" 100 ft. Red
1" CTS = 1-1/8" O.D. 0650385 127.15 5/8" OD 1/2" 100 ft. Blue SEA TECH FLEXPIPE & FITTINGS
0650394 94.05 5/8" OD 1/2" 100 ft. White
SOLD FULL LENGTHS ONLY

FlexPipe Cutter

No. Each Description
50001 $34.70 Cutter with Blade
