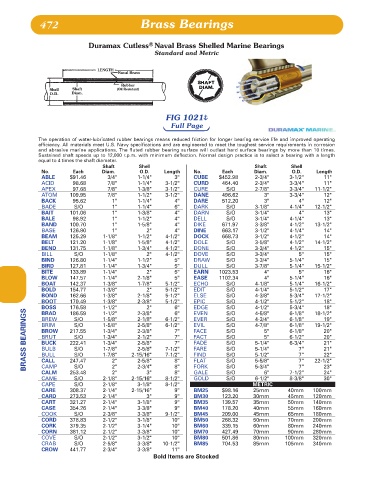

472 Brass Bearings

Duramax Cutless Naval Brass Shelled Marine Bearings
®
Standard and Metric

LENGTH
Naval Brass

Rubber
Shell Shaft (Oil Resistant)
O.D. Diam.

FIG 1021b
Full Page

The operation of water-lubricated rubber bearings means reduced friction for longer bearing service life and improved operating
efficiency. All materials meet U.S. Navy specifications and are engineered to meet the toughest service requirements in corrosion
and abrasive marine applications. The fluted rubber bearing surface will outlast hard surface bearings by more than 10 times.
Sustained shaft speeds up to 12,000 r.p.m. with minimum deflection. Normal design practice is to select a bearing with a length
equal to 4 times the shaft diameter.
Shaft Shell Shaft Shell
No. Each Diam. O.D. Length No. Each Diam. O.D. Length
ABLE $91.46 3/4" 1-1/4" 3" CUBE $452.98 2-3/4" 3-1/2" 11"
ACID 98.68 7/8" 1-1/4" 3-1/2" CURD 464.40 2-3/4" 3-3/4" 11"
APEX 97.68 7/8" 1-3/8" 3-1/2" CURE S/O 2-7/8" 3-3/4" 11-1/2"
ATOM 109.95 7/8" 1-1/2" 3-1/2" DANE 496.62 3" 3-3/4" 12"
BACK 95.62 1" 1-1/4" 4" DARE 512.20 3" 4" 12"
BADE S/O 1" 1-1/4" 6" DARK S/O 3-1/8" 4-1/4" 12-1/2"
BAIT 101.06 1" 1-3/8" 4" DARN S/O 3-1/4" 4" 13"
BALE 98.92 1" 1-1/2" 4" DELL S/O 3-1/4" 4-1/4" 13"
BAND 100.70 1" 1-5/8" 4" DIKE 671.97 3-3/8" 4-1/2" 13-1/2"
BASE 126.80 1" 2" 4" DINE 663.17 3-1/2" 4-1/4" 14"
BEAM 125.29 1-1/8" 1-1/2" 4-1/2" DOCK 668.73 3-1/2" 4-1/2" 14"
BELT 121.20 1-1/8" 1-5/8" 4-1/2" DOLE S/O 3-5/8" 4-1/2" 14-1/2"
BEND 131.75 1-1/8" 1-3/4" 4-1/2" DONE S/O 3-3/4" 4-1/2" 15"
BILL S/O 1-1/8" 2" 4-1/2" DOVE S/O 3-3/4" 5" 15"
BIND 126.80 1-1/4" 1-1/2" 5" DRAW S/O 3-3/4" 5-1/4" 15"
BIRD 127.81 1-1/4" 1-3/4" 5" DULL S/O 3-7/8" 5-1/4" 15-1/2"
BITE 133.89 1-1/4" 2" 5" EARN 1023.53 4" 5" 16"
BLOW 147.57 1-1/4" 2-1/8" 5" EASE 1102.34 4" 5-1/4" 16"
BOAT 142.37 1-3/8" 1-7/8" 5-1/2" ECHO S/O 4-1/8" 5-1/4" 16-1/2"
BOLD 154.77 1-3/8" 2" 5-1/2" EDIT S/O 4-1/4" 5-1/2" 17"
BOND 162.66 1-3/8" 2-1/8" 5-1/2" ELSE S/O 4-3/8" 5-3/4" 17-1/2"
BOOT 170.49 1-3/8" 2-3/8" 5-1/2" EPIC S/O 4-1/2" 5-1/2" 18"
6"
2"
BOSS 176.58 1-1/2" 2-3/8" 6-1/2" EDGE S/O 4-1/2" 5-3/4" 18-1/2"
18"
BRASS BEARINGS BRIM 217.55 1-5/8" 2-15/16" 6-1/2" EVIL S/O 4-7/8" 6-1/8" 19-1/2"
S/O
4-5/8"
186.59
1-1/2"
6-1/8"
EVEN
BRAD
6"
2-1/8"
1-5/8"
19"
S/O
4-3/4"
EVER
6-1/8"
S/O
BREW
2-5/8"
S/O
7"
BROW
1-3/4"
5"
6-1/8"
FACE
20"
S/O
2-3/8"
7"
2-1/2"
FACT
S/O
20"
5"
6-1/2"
S/O
BRUT
1-3/4"
BUCK
6-3/4"
21"
7"
1-3/4"
2-5/8"
S/O
FADE
5-1/4"
222.41
FARE
21"
5-1/4"
S/O
7"
1-7/8"
2-5/8"
BULB
S/O
7-1/2"
FIND
5-1/2"
S/O
22"
1-7/8"
S/O
BULL
7-1/2"
7"
7"
CALL
23"
CAMP
7"
5-3/4"
S/O
8"
FORK
2"
2-3/4"
S/O
CALM 247.47 2" 2-5/8" 8" FLAT S/O 5-5/8" 7-1/2" 22-1/2"
6"
2"
3"
S/O
253.48
GALE
24"
8"
CAME S/O 2-1/8" 2-15/16" 8-1/2" GOLD S/O 6-1/2" 8-3/8" 30"
CAPE S/O 2-1/8" 3-1/8" 8-1/2" METRIC
CARE 308.37 2-1/4" 2-15/16" 9" BM25 $98.16 25mm 40mm 100mm
CARD 273.53 2-1/4" 3" 9" BM30 123.20 30mm 45mm 120mm
CART 321.27 2-1/4" 3-1/8" 9" BM35 139.57 35mm 50mm 140mm
CASE 354.26 2-1/4" 3-3/8" 9" BM40 178.20 40mm 55mm 160mm
COOK S/O 2-3/8" 3-3/8" 9-1/2" BM45 209.00 45mm 65mm 180mm
CORD 378.83 2-1/2" 3-1/8" 10" BM50 268.32 50mm 70mm 200mm
CORK 379.35 2-1/2" 3-1/4" 10" BM60 339.15 60mm 80mm 240mm
CORN 381.12 2-1/2" 3-3/8" 10" BM70 427.49 70mm 90mm 280mm
COVE S/O 2-1/2" 3-1/2" 10" BM80 501.86 80mm 100mm 320mm
CRAB S/O 2-5/8" 3-3/8" 10-1/2" BM85 704.53 85mm 105mm 340mm
CROW 441.77 2-3/4" 3-3/8" 11"
Bold Items are Stocked
