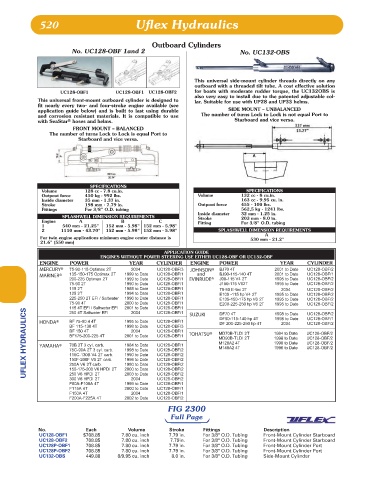

Page 521 - Lewis

520 Uflex Hydraulics

Outboard Cylinders
No. UC128-OBF 1and 2 No. UC132-OBS

This universal side-mount cylinder threads directly on any
outboard with a threaded tilt tube. A cost effective solution
UC128-OBF1 UC128-OBF1 UC128-OBF2 for boats with moderate rudder torque, the UC132OBS is
also very easy to install due to the patented adjustable col-
This universal front-mount outboard cylinder is designed to lar. Suitable for use with UP28 and UP33 helms.
fit nearly every two- and four-stroke engine available (see
application guide below) and is built to last using durable SIDE MOUNT – UNBALANCED
and corrosion resistant materials. It is compatible to use The number of turns Lock to Lock is not equal Port to
with SeaStar ® hoses and helms. Starboard and vice versa.
FRONT MOUNT – BALANCED
The number of turns Lock to Lock is equal Port to
Starboard and vice versa.

SPECIFICATIONS
Volume 128 cc - 7.8 cu.in. SPECIFICATIONS
Outpout force 450 kg - 992 lbs. Volume 132 cc - 8 cu.in.
Inside diameter 35 mm - 1.37 in. 163 cc - 9.95 cu. in.
Stroke 198 mm - 7.79 in. Outpout force 455 - 100 lbs.
Fittings For 3/8" O.D. tubing 562,5 kg - 1241 lbs.
Inside diameter 32 mm - 1.25 in.
SPLASHWELL DIMENSION REQUIREMENTS Stroke 203 mm - 8.0 in.
Engine A B C Fitting For 3/8" O.D. tubing
1 540 mm - 21.25" 152 mm - 5.98" 152 mm - 5.98"
2 1110 mm - 43.70" 152 mm - 5.98" 152 mm - 5.98" SPLASHWELL DIMENSION REQUIREMENTS
A
For twin engine applications minimum engine center distance is 530 mm - 21.2"
21.6" (550 mm)
APPLICATION GUIDE
ENGINES WITHOUT POWER STEERING USE EITHER UC128-OBF OR UC132-OBF
ENGINE POWER YEAR CYLINDER ENGINE POWER YEAR CYLINDER

UFLEX HYDRAULICS

FIG 2300
Full Page

No. Each Volume Stroke Fittings Description
UC128-OBF1 $708.85 7.80 cu. inch 7.79 in. For 3/8" O.D. Tubing Front-Mount Cylinder Starboard
UC128-OBF2 708.85 7.80 cu. inch 7.79in. For 3/8" O.D. Tubing Front-Mount Cylinder Starboard
UC128P-OBF1 708.85 7.80 cu. inch 7.79 in. For 3/8" O.D. Tubing Front-Mount Cylinder Port
UC128P-OBF2 708.85 7.80 cu. inch 7.79 in. For 3/8" O.D. Tubing Front-Mount Cylinder Port
UC132-OBS 449.80 8/9.95 cu. inch 8.0 in. For 3/8" O.D. Tubing Side-Mount Cylinder
