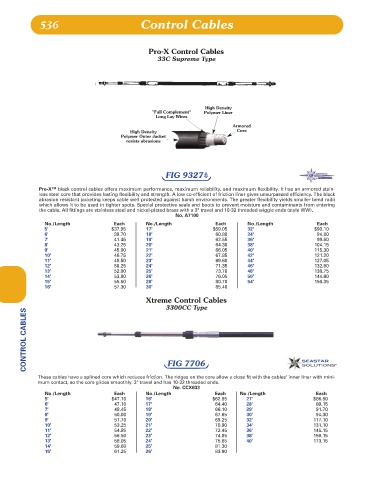

536 Control Cables

Pro-X Control Cables
33C Supreme Type

High Density
"Full Complement" Polymer Liner
Long Lay Wires
Armored
High Density Core
Polymer Outer Jacket
resists abrasions

FIG 9327b

Pro-X™ black control cables offers maximum performance, maximum reliability, and maximum flexibility. It has an armored stain-
less steel core that provides lasting flexibility and strength. A low co-efficient of friction liner gives unsurpassed efficiency. The black
abrasion resistant jacketing keeps cable well protected against harsh environments. The greater flexibility yields smaller bend radii
which allows it to be used in tighter spots. Special protective seals and boots to prevent moisture and contaminants from entering
the cable. All fittings are stainless steel and nickel-plated brass with a 3" travel and 10-32 threaded wiggle ends (style WW).
No. A7100
No./Length Each No./Length Each No./Length Each
5' $37.95 17' $59.05 32' $90.10
6' 39.70 18' 60.80 34' 94.80
7' 41.45 19' 62.55 36' 99.50
8' 43.25 20' 64.30 38' 104.15
9' 45.00 21' 66.05 40' 115.30
10' 46.75 22' 67.85 42' 121.20
11' 48.50 23' 69.60 44' 127.05
12' 50.25 24' 71.35 46' 132.90
13' 52.00 25' 73.70 48' 138.75
14' 53.80 26' 76.05 50' 144.60
15' 55.50 28' 80.70 54' 156.35
16' 57.30 30' 85.40

Xtreme Control Cables
3300CC Type
CONTROL CABLES

FIG 7706

These cables have a splined core which reduces friction. The ridges on the core allow a close fit with the cables' inner liner with mini-
mum contact, so the core glides smoothly. 3" travel and has 10-32 threaded ends.
No. CCX633
No./Length Each No./Length Each No./Length Each
5' $47.10 16' $62.85 27' $86.50
6' 47.10 17' 64.40 28' 89.15
7' 48.45 18' 66.10 29' 91.70
8' 50.00 19' 67.65 30' 94.30
9' 51.70 20' 69.25 32' 117.10
10' 53.25 21' 70.90 34' 131.10
11' 54.85 22' 72.45 36' 145.15
12' 56.50 23' 74.05 38' 159.15
13' 58.05 24' 75.65 40' 173.15
14' 59.60 25' 81.30
15' 61.25 26' 83.90
