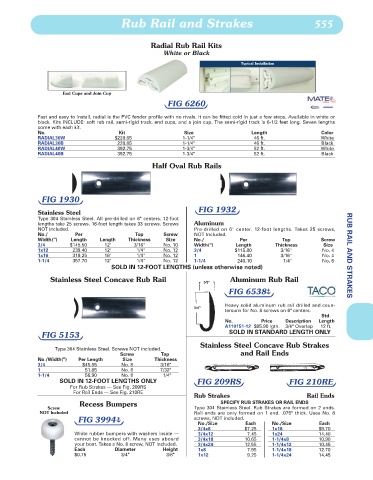

Rub Rail and Strakes 555

Radial Rub Rail Kits
White or Black
Typical Installation

End Cups and Join Cup
FIG 6260

Fast and easy to install, radial is the PVC fender profile with no rivals. It can be fitted cold in just a few steps. Available in white or
black. Kits INCLUDE: soft rub rail, semi-rigid track, end cups, and a join cup. The semi-rigid track is 6-1/2 feet long. Seven lengths
come with each kit.
No. Kit Size Length Color
RADIAL30W $228.65 1-1/4" 46 ft. White
RADIAL30B 228.65 1-1/4" 46 ft. Black
RADIAL40W 392.75 1-3/4" 52 ft. White
RADIAL40B 392.75 1-3/4" 52 ft. Black
Half Oval Rub Rails

FIG 1930
FIG 1932
Stainless Steel
Type 304 Stainless Steel. All pre-drilled on 6" centers. 12-foot
lengths take 25 screws. 16-foot length takes 33 screws. Screws Aluminum
NOT included. Pre-drilled on 6" center. 12-foot lengths. Takes 25 screws,
No./ Per Top Screw NOT Included.
Width(") Length Length Thickness Size No./ Per Top Screw
3/4 $145.50 12' 3/16" No. 10 Width(") Length Thickness Size
1x12 239.40 12' 1/4" No. 12 3/4 $115.80 3/16" No. 4
1x16 319.25 16' 1/4" No. 12 1 146.40 3/16" No. 4 RUB RAIL AND STRAKES
1-1/4 357.70 12' 1/4" No. 12 1-1/4 240.10 1/4" No. 6
SOLD IN 12-FOOT LENGTHS (unless otherwise noted)
Stainless Steel Concave Rub Rail 3/8" Aluminum Rub Rail

FIG 6538b

3/4" Heavy solid aluminum rub rail drilled and coun-
tersunk for No. 8 screws on 6" centers.
Std.
No. Price Description Length
A110151-12 $95.90 lgth. 3/4" Overlap 12 ft.
FIG 5153 SOLD IN STANDARD LENGTH ONLY
Stainless Steel Concave Rub Strakes
Type 304 Stainless Steel. Screws NOT included.
Screw Top and Rail Ends
No./Width(") Per Length Size Thickness
3/4 $45.55 No. 8 3/16"
1 51.85 No. 8 7/32"
1-1/4 56.90 No. 8 1/4"
SOLD IN 12-FOOT LENGTHS ONLY FIG 209RS FIG 210RE
For Rub Strakes — See Fig. 209RS
For Rail Ends — See Fig. 210RE
Rub Strakes Rail Ends
Recess Bumpers SPECIFY RUB STRAKES OR RAIL ENDS
Screw Type 304 Stainless Steel. Rub Strakes are formed on 2 ends.
NOT Included Rail ends are only formed on 1 end. .075" thick. Uses No. 8
FIG 3994b screws, NOT included.
No./Size Each No./Size Each
3/4x8 $7.25 1x18 $9.70
White rubber bumpers with washers inside — 3/4x12 7.45 1x24 14.40
cannot be knocked off. Many uses aboard 3/4x18 10.65 1-1/4x8 10.90
your boat. Takes a No. 8 screw, NOT included. 3/4x24 12.55 1-1/4x12 10.45
Each Diameter Height 1x8 7.95 1-1/4x18 12.70
$0.75 3/4" 3/8" 1x12 9.25 1-1/4x24 14.45
