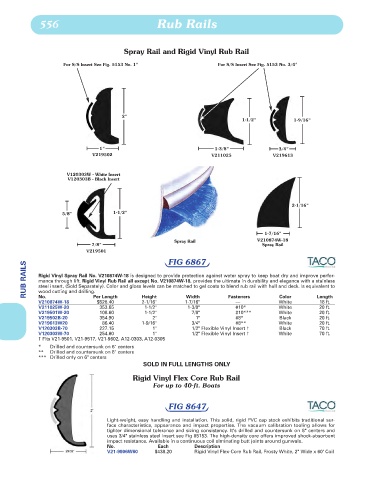

Page 557 - Lewis

556 Rub Rails

Spray Rail and Rigid Vinyl Rub Rail

For S/S Insert See Fig. 5153 No. 1" For S/S Insert See Fig. 5153 No. 3/4"

2"
1-1/2" 1-9/ 16"

1" 1-3/8" 3/4"
V219502 V211025 V219613

V120303W - White Insert
V120303B - Black Insert

2-1/16"
5/8" 1-1/2"

1-7/16"
Spray Rail V210874W-18
7/8" Spray Rail
V219501 FIG 6867
RUB RAILS Rigid Vinyl Spray Rail No. V210874W-18 is designed to provide protection against water spray to keep boat dry and improve perfor-

mance through lift. Rigid Vinyl Rub Rail all except No. V210874W-18, provides the ultimate in durability and elegance with a stainless
steel insert, (Sold Separately). Color and gloss levels can be matched to gel coats to blend rub rail with hull and deck. Is equivalent to
wood cutting and drilling.
No.
Height
Color
Width
18 ft.
—
V210874W-18 Per Length 2-1/16" 1-7/16" Fasteners White Length
$528.40
V211025W-20 353.65 1-1/2" 1-3/8" #10* White 20 ft.
V219501W-20 108.60 1-1/2" 7/8" #10*** White 20 ft.
V219502B-20 354.90 2" 1" #8* Black 20 ft.
V219613W20 86.40 1-9/16" 3/4" #8** White 20 ft.
V120303B-70 227.15 1" 1/2" Flexible Vinyl Insert † Black 70 ft.
V120303W-70 254.60 1" 1/2" Flexible Vinyl Insert † White 70 ft.
† Fits V21-9501, V21-9517, V21-9602, A12-0303, A12-0305
* Drilled and countersunk on 6" centers
** Drilled and countersunk on 8" centers
*** Drilled only on 6" centers
SOLD IN FULL LENGTHS ONLY
Rigid Vinyl Flex Core Rub Rail
For up to 40-ft. Boats

FIG 8647

Light-weight, easy handling and installation. This solid, rigid PVC cap stock exhibits traditional sur-
face characteristics, appearance and impact properties. The vacuum calibration tooling allows for
tighter dimensional tolerance and sizing consistency. It's drilled and countersunk on 8" centers and
uses 3/4" stainless steel insert see Fig #5153. The high-density core offers improved shock-absorbent
impact resistance. Available in a continuous coil elminating butt joints around gunwale.
No. Each Description
V21-9906W60 $438.20 Rigid Vinyl Flex-Core Rub Rail, Frosty White, 2" Wide x 60' Coil
