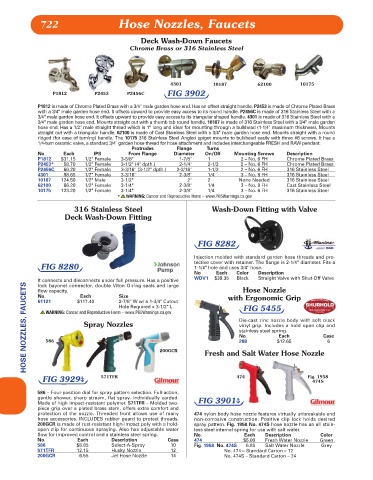

722 Hose Nozzles, Faucets

Deck Wash-Down Faucets
Chrome Brass or 316 Stainless Steel

4301 10187 62100 10175
P1812 P2453 P2456C FIG 3902

P1812 is made of Chrome Plated Brass with a 3/4" male garden hose end. Has an offset straight handle. P2453 is made of Chrome Plated Brass
with a 3/4" male garden hose end. It offsets upward to provide easy access to its round handle. P2456C is made of 316 Stainless Steel with a
3/4" male garden hose end. It offsets upward to provide easy access to its triangular shaped handle. 4301 is made of 316 Stainless Steel with a
3/4" male garden hose end. Mounts straight out with a thumb tab round handle. 10187 is made of 316 Stainless Steel with a 3/4" male garden
hose end. Has a 1/2" male straight thread which is 1" long and ideal for mounting through a bulkhead (1-1/4" maximum thickness). Mounts
straight out with a triangular handle. 62100 is made of Cast Stainless Steel with a 3/4" male garden hose end. Mounts straight with a round
ridged (for ease of turning) handle. The 10175 316 Stainless Steel Angled spigot mounts to bulkhead easily with three #6 screws. It has a
1/4-turn ceramic valve, a standard 3/4" garden hose thread for hose attachment and includes interchangeable FRESH and RAW pendant.
Protrudes Flange Turns
No. Each IPS From Flange Diameter On/Off Mounting Screws Description
P1812 $31.15 1/2" Female 3-5/8" 1-7/8" 1 2 – No. 6 FH Chrome Plated Brass
P2453* 58.70 1/2" Female 3-1/2" (4" dpth.) 2-1/4" 2-1/2 2 – No. 6 FH Chrome Plated Brass
P2456C 66.20 1/2" Female 3-3/16" (3-1/2" dpth.) 2-3/16" 1-1/2 2 – No. 6 FH 316 Stainless Steel
4301 88.65 1/2" Female 3-3/16" 2-3/8" 1/4 3 – No. 8 FH 316 Stainless Steel
10187 124.50 1/2" Male 3-1/2" 2" 2 None Needed 316 Stainless Steel
62100 66.20 1/2" Female 3-1/4" 2-3/8" 1/4 3 – No. 8 FH Cast Stainless Steel
10175 123.20 1/2" Female 3-1/4" 2-3/8" 1/4 3 – No. 6 FH 316 Stainless Steel
* WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

316 Stainless Steel Wash-Down Fitting with Valve
Deck Wash-Down Fitting

FIG 8282

Injection molded with standard garden hose threads and pro-
tective cover with retainer. The flange is 2-1/4" diameter. Fits a
FIG 8280 1-1/4" hole and uses 3/4" hose.
No Each Color Description
Black
Straight Valve with Shut-Off Valve
WDV1 $39.35 with Ergonomic Grip
It connects and disconnects under full pressure. Has a positive
HOSE NOZZLES, FAUCETS WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov Fresh and Salt Water Hose Nozzle Case
lock bayonet connector, double Viton O-ring seals and large
Hose Nozzle
flow capacity.
Each
Size
No.
61121
2-7/8" W w/ a 1-3/4" Cutout
$117.40
Hole Required x 3-1/2" L
FIG 5455
Die-cast zinc nozzle body with soft black
Spray Nozzles
vinyl grip. Includes a hold open clip and
stainless steel spring.
Each
No.
288
$12.65
6
586
200GCR
FIG 3929b 571TFR 474 Fig. 1958
474S
586 – Four-position dial for spray pattern selection. Full-action,
gentle shower, sharp stream, flat spray. Individually carded.
Made of high impact-resistant polymer. 571TFR – Molded two- FIG 3901b
piece grip over a plated brass stem, offers extra comfort and
protection of the nozzle. Threaded front allows use of many 474 nylon body hose nozzle features virtually unbreakable and
hose accessories. INCLUDES rubber guard to protect threads. non-corrosive construction. Positive clip lock holds desired
200GCR is made of rust-resistant high-impact poly with a hold- spray pattern. Fig. 1958 No. 474S hose nozzle has an all stain-
open clip for continuous spraying. Also has adjustable water less steel internal spring for use with salt water.
flow for improved control and a stainless steel spring. No. Each Description Color
No. Each Description Case 474 $5.00 Fresh Water Nozzle Green
586 $8.85 Select-A-Spray 10 Fig. 1958 No. 474S 6.85 Salt Water Nozzle Grey
571TFR 12.15 Husky Nozzle 12 No. 474 – Standard Carton – 12
200GCR 6.55 Jet Hose Nozzle 14 No. 474S – Standard Carton – 24
