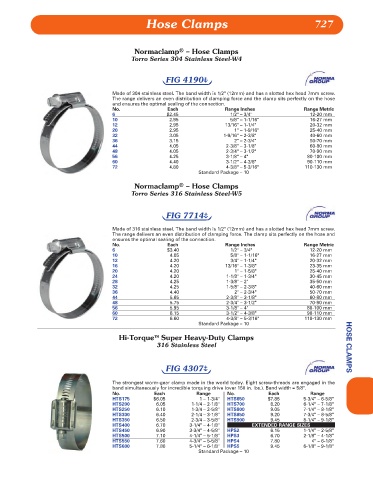

Page 728 - Lewis

Hose Clamps 727

Normaclamp – Hose Clamps
®
Torro Series 304 Stainless Steel-W4

FIG 4190b

Made of 304 stainless steel. The band width is 1/2" (12mm) and has a slotted hex head 7mm screw.
The range delivers an even distribution of clamping force and the clamp sits perfectly on the hose
and ensures the optimal sealing of the connection.
No. Each Range Inches Range Metric
6 $2.45 1/2" – 3/4" 12-20 mm
10 2.95 5/8" – 1-1/16" 16-27 mm
12 2.95 13/16" – 1-1/4" 20-32 mm
20 2.95 1" – 1-9/16" 25-40 mm
32 3.05 1-9/16" – 2-3/8" 40-60 mm
36 3.15 2" – 2-3/4" 50-70 mm
44 4.05 2-3/8" – 3-1/8" 60-80 mm
48 4.05 2-3/4" – 3-1/2" 70-90 mm
56 4.25 3-1/8" – 4" 80-100 mm
60 4.40 3-1/2" – 4-3/8" 90-110 mm
72 4.80 4-3/8" – 5-3/16" 110-130 mm
Standard Package – 10

®
Normaclamp – Hose Clamps
Torro Series 316 Stainless Steel-W5

FIG 7714b

Made of 316 stainless steel. The band width is 1/2" (12mm) and has a slotted hex head 7mm screw.
The range delivers an even distribution of clamping force. The clamp sits perfectly on the hose and
ensures the optimal sealing of the connection.
No. Each Range Inches Range Metric
6 $3.40 1/2" – 3/4" 12-20 mm
10 4.05 5/8" – 1-1/16" 16-27 mm
12 4.20 3/4" – 1-1/4" 20-32 mm
16 4.20 13/16" – 1-3/8" 23-35 mm
20 4.20 1" – 1-5/8" 25-40 mm
24 4.20 1-1/8" – 1-3/4" 30-45 mm
28 4.25 1-3/8" – 2" 35-50 mm
32 4.25 1-5/8" – 2-3/8" 40-60 mm
36 4.40 2" – 2-3/4" 50-70 mm
44 5.65 2-3/8" – 3-1/8" 60-80 mm
48 5.75 2-3/4" – 3-1/2" 70-90 mm
56 5.95 3-1/8" – 4" 80-100 mm
60 6.15 3-1/2" – 4-3/8" 90-110 mm
72 6.60 4-3/8" – 5-3/16" 110-130 mm
Standard Package – 10

Hi-Torque™ Super Heavy-Duty Clamps
316 Stainless Steel HOSE CLAMPS

FIG 4307b

The strongest worm-gear clamp made in the world today. Eight screw-threads are engaged in the
band simultaneously for incredible torquing drive (over 150 in. lbs.). Band width = 5/8".
No. Each Range No. Each Range
HTS175 $6.05 1 – 1-3/4" HTS650 $7.85 5-3/4" – 6-5/8"
HTS200 6.05 1-1/4 – 2-1/8" HTS700 8.20 6-1/4" – 7-1/8"
HTS250 6.10 1-3/4 – 2-5/8" HTS800 9.05 7-1/4" – 8-1/8"
HTS300 6.40 2-1/4 – 3-1/8" HTS850 9.20 7-3/4" – 8-5/8"
HTS350 6.50 2-3/4 – 3-5/8" HTS900 9.45 8-1/4" – 9-1/8"
HTS400 6.70 3-1/4" – 4-1/8" EXTENDED RANGE SIZES
HTS450 6.90 3-3/4" – 4-5/8" HPS2 6.15 1-1/4" – 2-5/8"
HTS500 7.10 4-1/4" – 5-1/8" HPS3 6.70 2-1/8" – 4-1/8"
HTS550 7.60 4-3/4" – 5-5/8" HPS4 7.80 4" – 6-1/8"
HTS600 7.80 5-1/4" – 6-1/8" HPS5 9.45 6-1/8" – 9-1/8"
Standard Package – 10
