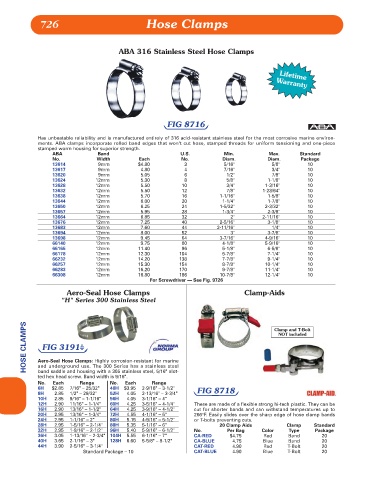

726 Hose Clamps

ABA 316 Stainless Steel Hose Clamps

Lifetime
Warranty

FIG 8716

Has unbeatable reliability and is manufactured entirely of 316 acid-resistant stainless steel for the most corrosive marine environ-
ments. ABA clamps incorporate rolled band edges that won't cut hose, stamped threads for uniform tensioning and one-piece
stamped worm housing for superior strength.
ABA Band U.S. Min. Max. Standard
No. Width Each No. Diam. Diam. Package
13614 9mm $4.80 3 5/16" 5/8" 10
13617 9mm 4.80 4 7/16" 3/4" 10
13620 9mm 5.05 6 1/2" 7/8" 10
13624 12mm 5.30 8 5/8" 1-1/8" 10
13628 12mm 5.50 10 3/4" 1-3/16" 10
13632 12mm 5.50 12 7/8" 1-23/64" 10
13638 12mm 5.70 16 1-1/16" 1-5/8" 10
13644 12mm 6.00 20 1-1/4" 1-7/8" 10
13650 12mm 6.25 24 1-5/32" 2-3/32" 10
13657 12mm 5.95 28 1-3/4" 2-3/8" 10
13664 12mm 6.85 32 2" 2-11/16" 10
13676 12mm 7.25 40 2-5/16" 3-1/8" 10
13683 12mm 7.60 44 2-11/16" 1/4" 10
13694 12mm 8.00 52 3" 3-7/8" 10
13698 12mm 9.45 64 3-7/16" 4-9/16" 10
66140 12mm 9.75 80 4-1/8" 5-9/16" 10
66165 12mm 11.40 96 5-1/8" 6-5/8" 10
66178 12mm 12.30 104 5-7/8" 7-1/4" 10
66232 12mm 14.20 138 7-7/8" 9-1/4" 10
66257 12mm 15.30 154 8-7/8" 10-1/4" 10
66283 12mm 16.20 170 9-7/8" 11-1/4" 10
66308 12mm 16.80 186 10-7/8" 12-1/4" 10
For Screwdriver — See Fig. 9726
Aero-Seal Hose Clamps Clamp-Aids
"H" Series 300 Stainless Steel

HOSE CLAMPS Aero-Seal Hose Clamps: Highly corrosion-resistant for marine Clamp and T-Bolt
NOT included

FIG 3191b

and underground use. The 300 Series has a stainless steel
band saddle and housing with a 305 stainless steel, 5/16" slot-
ted hex head screw. Band width is 9/16".
No. Each Range No. Each Range
6H $2.85 7/16" – 25/32" 48H $3.95 2-9/16" – 3-1/2" FIG 8718
8H 2.85 1/2" – 29/32" 52H 4.05 2-13/16" – 3-3/4"
10H 2.85 9/16" – 1-1/16" 56H 4.05 3-1/16" – 4"
12H 2.90 11/16" – 1-1/4" 60H 4.25 3-5/16" – 4-1/4" These are made of a flexible strong hi-tech plastic. They can be
16H 2.90 13/16" – 1-1/2" 64H 4.25 3-9/16" – 4-1/2" cut for shorter bands and can withstand temperatures up to
20H 2.95 13/16" – 1-3/4" 72H 4.55 4-1/16" – 5" 266°F. Easily slides over the sharp edge of hose clamp bands
24H 2.95 1-1/16" – 2" 80H 5.15 4-9/16" – 5-1/2" or T-bolts preventing cuts.
28H 2.95 1-5/16" – 2-1/4" 88H 5.35 5-1/16" – 6" 20 Clamp Aids Clamp Standard
32H 2.95 1-9/16" – 2-1/2" 96H 5.40 5-9/16" – 6-1/2" No. Per Bag Color Type Package
36H 3.05 1-13/16" – 2-3/4" 104H 5.55 6-1/16" – 7" CA-RED $4.75 Red Band 20
40H 3.65 2-1/16" – 3" 128H 6.60 5-5/8" – 8-1/2" CA-BLUE 4.75 Blue Band 20
44H 3.90 2-5/16" – 3-1/4" CAT-RED 4.90 Red T-Bolt 20
Standard Package – 10 CAT-BLUE 4.90 Blue T-Bolt 20
