P. 358

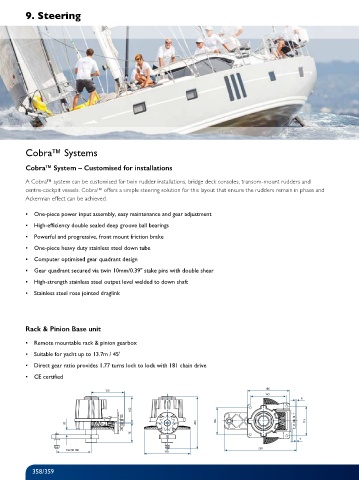

9. Steering
Cobra™ Systems
Cobra™ System – Customised for installations
A Cobra™ system can be customised for twin rudder installations, bridge deck consoles, transom-mount rudders and
centre-cockpit vessels. Cobra™ offers a simple steering solution for this layout that ensure the rudders remain in phase and
Ackerman effect can be achieved.
▪ One-piece power input assembly, easy maintenance and gear adjustment
▪ High-efficiency double sealed deep groove ball bearings
▪ Powerful and progressive, front mount friction brake
▪ One-piece heavy duty stainless steel down tube
▪ Computer optimised gear quadrant design
▪ Gear quadrant secured via twin 10mm/0.39" stake pins with double shear
▪ High-strength stainless steel output level welded to down shaft
▪ Stainless steel rose jointed draglink
166
Rack & Pinion Base unit
143
6
▪ Remote mountable rack & pinion gearbox
▪ Suitable for yacht up to 13.7m / 45'
104 116
▪ Direct gear ratio provides 1.77 turns lock to lock with 181 chain drive
▪ CE certified 7
283
166
129
143
6
102
20 203 104 116
76
7
283
134 OR 166
179
129
358/359
102
20 203
76
134 OR 166
179
