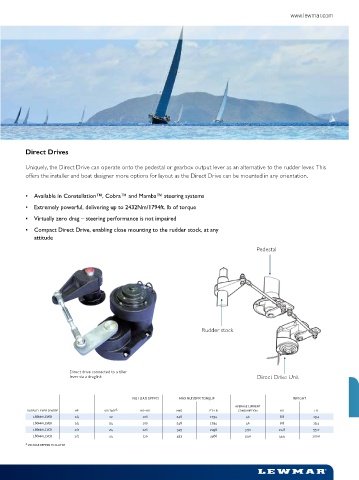

Direct Drives

Uniquely, the Direct Drive can operate onto the pedestal or gearbox output lever as an alternative to the rudder lever. This
offers the installer and boat designer more options for layout as the Direct Drive can be mounted in any orientation.

▪ Available in Constellation™, Cobra™ and Mamba™ steering systems
▪ Extremely powerful, delivering up to 2432Nm/1794ft. lb of torque
▪ Virtually zero drag – steering performance is not impaired
▪ Compact Direct Drive, enabling close mounting to the rudder stock, at any
attitude

Pedestal

Rudder stock

Direct drive connected to a tiller
lever via a draglink Direct Drive Unit

NO LOAD SPEED MAX RUDDER TORQUE WEIGHT
 
     –  -   
  ⁄   . .
  ⁄   . .
  ⁄  .  . .
  ⁄  .  . .
   
