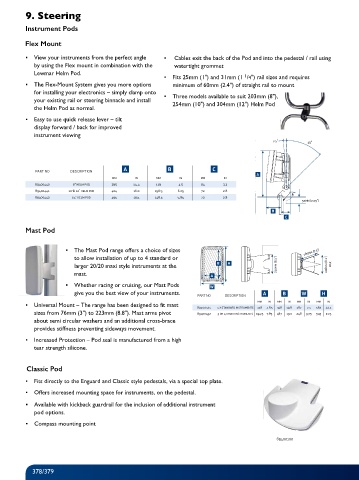

9. Steering

Instrument Pods

Flex Mount

▪ View your instruments from the perfect angle ▪ Cables exit the back of the Pod and into the pedestal / rail using
by using the Flex mount in combination with the watertight grommet
Lewmar Helm Pod.
▪ Fits 25mm (1") and 31mm (1 /4") rail sizes and requires
1
▪ The Flex-Mount System gives you more options minimum of 60mm (2.4") of straight rail to mount
for installing your electronics – simply clamp onto
your existing rail or steering binnacle and install ▪ Three models available to suit 203mm (8"),
the Helm Pod as normal. 254mm (10") and 304mm (12") Helm Pod
▪ Easy to use quick release lever – tilt
display forward / back for improved
instrument viewing
. °
°

A B C
PART NO DESCRIPTION
A
     
"   . . .
 "   . . . .
"   . . . .
 ( . ")
B
C

Mast Pod

▪ The Mast Pod range offers a choice of sizes  ( . ")
to allow installation of up to 4 standard or
larger 20/20 maxi style instruments at the B H  ( . ")  ( . ") 
mast. A
▪ Whether racing or cruising, our Mast Pods W
give you the best view of your instruments. PART NO DESCRIPTION A B W H







▪ Universal Mount – The range has been designed to fit mast     . . . .

sizes from 76mm (3") to 223mm (8.8"). Mast arms pivot     . . . . .
about semi circular washers and an additional cross-brace
provides stiffness preventing sideways movement.
▪ Increased Protection – Pod seal is manufactured from a high
tear strength silicone.
Classic Pod
▪ Fits directly to the Enguard and Classic style pedestals, via a special top plate.
▪ Offers increased mounting space for instruments, on the pedestal.

▪ Available with kickback guardrail for the inclusion of additional instrument
pod options.

▪ Compass mounting point
