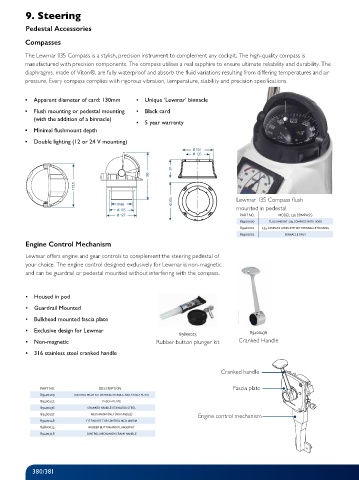

9. Steering

Pedestal Accessories

Compasses
The Lewmar 135 Compass is a stylish, precision instrument to complement any cockpit. The high-quality compass is
manufactured with precision components. The compass utilises a real sapphire to ensure ultimate reliability and durability. The
diaphragms, made of Viton®, are fully waterproof and absorb the fl uid variations resulting from differing temperatures and air
pressure. Every compass complies with rigorous vibration, temperature, stability and precision specifi cations.

▪ Apparent diameter of card: 130mm ▪ Unique ‘Lewmar’ binnacle
▪ Flush mounting or pedestal mounting ▪ Black card
(with the addition of a binnacle)
▪
▪ Minimal flushmount depth 179.5 5 year warranty
▪ Double lighting (12 or 24 V mounting)
ø 164
ø 126

97
199
179.5

ø 204 Lewmar 135 Compass fl ush
ø 88
ø 105 mounted in pedestal
ø 127 PART NO. MODEL COMPASS
    
    
199  
Engine Control Mechanism
Lewmar offers engine and gear controls to complement the steering pedestal of
ø 88
your choice. The engine control designed exclusively for Lewmar is non-magnetic
ø 105
and can be guardrail or pedestal mounted without interfering with the compass.
ø 127
▪ Housed in pod

▪ Guardrail Mounted
▪ Bulkhead mounted fascia plate
▪ Exclusive design for Lewmar

▪ Non-magnetic Rubber button plunger kit Cranked Handle
▪ 316 stainless steel cranked handle

Cranked handle

Fascia plate
PART NO. DESCRIPTION
       
 
   
  ( ) Engine control mechanism
    
    
   
