1. Windlasses

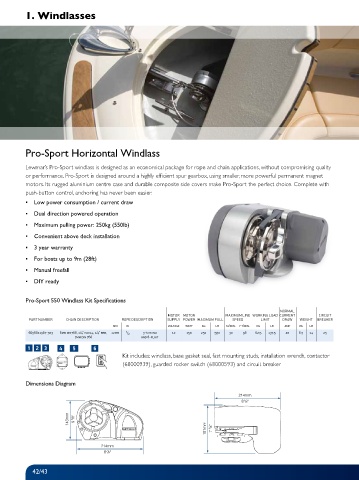

Pro-Sport Horizontal Windlass

Lewmar’s Pro-Sport windlass is designed as an economical package for rope and chain applications, without compromising quality
or performance. Pro-Sport is designed around a highly effi cient spur gearbox, using smaller, more powerful permanent magnet
motors. Its rugged aluminium centre case and durable composite side covers make Pro-Sport the perfect choice. Complete with
push-button control, anchoring has never been easier.
▪ Low power consumption / current draw
▪ Dual direction powered operation

▪ Maximum pulling power: 250kg (550lb)
▪ Convenient above deck installation
▪ 3 year warranty
▪ For boats up to 9m (28ft)

▪ Manual freefall
▪ DIY ready

Pro-Sport 550 Windlass Kit Specifications

NORMAL
MOTOR MOTOR MAXIMUM LINE WORKING LOAD CURRENT CIRCUIT
PART NUMBER CHAIN DESCRIPTION ROPE DESCRIPTION SUPPLY POWER MAXIMUM PULL SPEED LIMIT DRAW WEIGHT BREAKER
      /. /.     
-   , / "   , / " ,  ¹/₂ - . . .
   -
1 2 3 4 5 6
ON Kit includes: windlass, base gasket seal, fast mounting studs, installation wrench, contactor
(68000939), guarded rocker switch (68000593) and circuit breaker
5 5 /8"
A 143mm
Dimensions Diagram
B
ON
214mm
8 /8"
7
143mm 5 5 /8"
181mm 7 1 /8"

214mm
8 /8"
7

42/43
181mm 7 1 /8"
