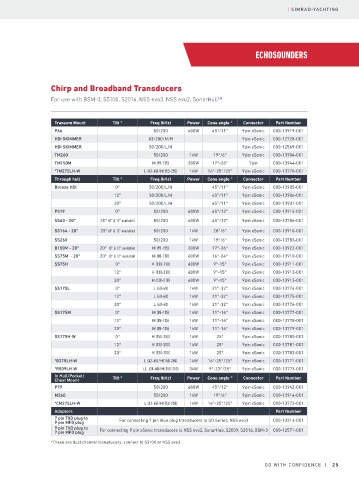

ECHOSOUNDERS

Chirp and Broadband Transducers

For use with BSM-3, S5100, S2016, NSS evo3, NSS evo2, SonarHub™

Transom Mount Tilt ° Freq (kHz) Power Cone angle ° Connector Part Number
P66 50/200 600W 45°/11° 9pin xSonic 000-13919-001
HDI SKIMMER 83/200/M/H 9pin xSonic 000-12728-001
HDI SKIMMER 50/200/L/H 9pin xSonic 000-12569-001
TM260 50/200 1kW 19°/6° 9pin xSonic 000-13904-001
TM150M M (95-155) 300W 17°-26° 7pin 000-13944-001
*TM275LH-W L (42-65)/H(150-250) 1kW 16°-25°/25° 9pin xSonic 000-13770-001
Through hull Tilt ° Freq (kHz) Power Cone angle ° Connector Part Number
Bronze HDI 0° 50/200/L/H 45°/11° 9pin xSonic 000-13905-001
12° 50/200/L/H 45°/11° 9pin xSonic 000-13906-001
20° 50/200/L/H 45°/11° 9pin xSonic 000-13907-001
P319 0° 50/200 600W 45°/12° 9pin xSonic 000-13915-001
SS60 - 20° 20° (0° & 12° available) 50/200 600W 45°/12° 9pin xSonic 000-13786-001
SS164 - 20° 20° (0° & 12° available) 50/200 1kW 20°/6° 9pin xSonic 000-13918-001
SS260 50/200 1kW 19°/6° 9pin xSonic 000-13783-001
B150M - 20° 20° (0° & 12° available) M (95-155) 300W 17°-26° 9pin xSonic 000-13922-001
SS75M - 20° 20° (0° & 12° available) M (80-130) 600W 16°-24° 9pin xSonic 000-13910-001
SS75H 0° H (130-210) 600W 9°-15° 9pin xSonic 000-13911-001
12° H (130-210) 600W 9°-15° 9pin xSonic 000-13912-001
20° H (130-210) 600W 9°-15° 9pin xSonic 000-13913-001
SS175L 0° L (40-60) 1kW 21°-32° 9pin xSonic 000-13774-001
12° L (40-60) 1kW 21°-32° 9pin xSonic 000-13775-001
20° L (40-60) 1kW 21°-32° 9pin xSonic 000-13776-001
SS175M 0° M (85-135) 1kW 11°-16° 9pin xSonic 000-13777-001
12° M (85-135) 1kW 11°-16° 9pin xSonic 000-13778-001
20° M (85-135) 1kW 11°-16° 9pin xSonic 000-13779-001
SS175H-W 0° H (150-250) 1kW 25° 9pin xSonic 000-13780-001
12° H (150-250) 1kW 25° 9pin xSonic 000-13781-001
20° H (150-250) 1kW 25° 9pin xSonic 000-13782-001
*B275LH-W L (42-65)/H(150-250) 1kW 16°-25°/25° 9pin xSonic 000-13771-001
*R509LH-W LL (28-60)/H(150-250) 3kW 9°-23°/25° 9pin xSonic 000-13773-001
In Hull/Pocket/ Tilt ° Freq (kHz) Power Cone angle ° Connector Part Number
Chest Mount
P79 50/200 600W 45°/12° 9pin xSonic 000-13942-001
M260 50/200 1kW 19°/6° 9pin xSonic 000-13914-001
*CM275LH-W L (42-65)/H(150-250) 1kW 16°-25°/25° 9pin xSonic 000-13772-001
Adaptors Part Number
7 pin TXD plug to For connecting 7 pin blue plug transducers to GO Series, NSS evo3 000-13313-001
9 pin MFD plug
9 pin TXD plug to
7 pin MFD plug For connecting 9 pin xSonic transducers to NSS evo2, SonarHub, S2009, S2016, BSM-3 000-12571-001
*These are dual channel transducers, connect to S5100 or NSS evo3.
