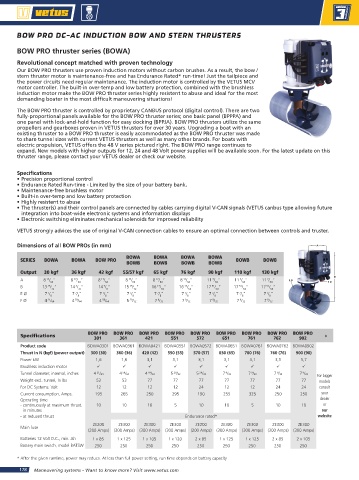

P. 178
BOW PRO DC-AC INDUCTION BOW AND STERN THRUSTERS
BOW PRO thruster series (BOWA)
Revolutional concept matched with proven technology
Our BOW PRO thrusters use proven induction motors without carbon brushes. As a result, the bow /
stern thruster motor is maintenance-free and has Endurance Rated* run-time! Just the tailpiece and
the power circuits need regular maintenance. The induction motor is controlled by the VETUS MCV
motor controller. The built-in over-temp and low battery protection, combined with the brushless
induction motor make the BOW PRO thruster series highly resistent to abuse and ideal for the most
demanding boater in the most difficult maneuvering situations!
The BOW PRO thruster is controlled by proprietary CANBUS protocol (digital control). There are two
fully-proportional panels available for the BOW PRO thruster series; one basic panel (BPPPA) and
one panel with lock-and-hold function for easy docking (BPPJA). BOW PRO thrusters utilize the same
propellers and gearboxes proven in VETUS thrusters for over 30 years. Upgrading a boat with an
existing thruster to a BOW PRO thruster is easily accommodated as the BOW PRO thruster was made
to share tunnel sizes with current VETUS thrusters as well as many other brands. For boats with
electric propulsion, VETUS offers the 48 V series pictured right. The BOW PRO range continues to
expand. New models with higher outputs for 12, 24 and 48 Volt power supplies will be available soon. For the latest update on this
thruster range, please contact your VETUS dealer or check our website.
Specifications
• Precision proportional control
• Endurance Rated Run-time - Limited by the size of your battery bank.
• Maintenance-free brushless motor
• Built-in over-temp and low battery protection
• Highly resistent to abuse
• The thruster(s) and their control panels are connected by cables carrying digital V-CAN signals (VETUS canbus type allowing future
integration into boat-wide electronic systems and information displays
• Electronic switching eliminates mechanical solenoids for improved reliability
VETUS strongly advices the use of original V-CAN connection cables to ensure an optimal connection between controls and truster.
Dimensions of all BOW PROs (in mm) A
BOWA BOWA BOWA BOWA
SERIES BOWA BOWA BOW PRO BOWB BOWB
BOWB BOWB BOWB BOWB
Output 30 kgf 36 kgf 42 kgf 55/57 kgf 65 kgf 76 kgf 90 kgf 110 kgf 130 kgf
B
7
17
17
17
17
17
17
7
7
A 8 / ” 8 / ” 8 / ” 8 / ” 8 / ” 8 / ” 11 / ” 11 / ” 11 / ” F Ø
64 64 64 64 64 64 64 64 64 E Ø
B 13 / ” 14 / ” 14 / ” 15 / ” 16 / ” 16 / ” 17 / ” 17 / ” 17 / ”
7
17
17
25
3
15
51
51
51
32
64
32
64
64
64
64
32
8
7
7
7
7
E Ø 7 / ” 7 / ” 7 / ” 7 / ” 7 / ” 7 / ” 7 / ” 7 / ” 7 / ”
7
7
7
7
7
8 8 8 8 8 8 8 8 8
29
9
9
9
9
9
59
59
F Ø 4 /64 4 /64 4 /64 5 /32 7 /32 7 /32 7 /32 7 /32 7 /32
21
Specifications BOW PRO BOW PRO BOW PRO BOW PRO BOW PRO BOW PRO BOW PRO BOW PRO BOW PRO >
361
421
762
651
572
761
301
902
551
Product code BOWA0301 BOWA0361 BOWA0421 BOWA0551 BOWA0572 BOWA0651 BOWA0761 BOWA0762 BOWA0902
Thrust in N (kgf) (power output) 300 (30) 360 (36) 420 (42) 550 (55) 570 (57) 650 (65) 760 (76) 760 (76) 900 (90)
Power kW 1,6 1,6 3,1 3,1 3,1 3,1 3,1 3,1 5,7
Brushless induction motor
Tunnel diameter, internal, inches 4 /64 4 /64 4 /64 5 /32 5 /32 7 /32 7 /32 7 /32 7 /32 For bigger
9
9
9
29
9
59
59
21
29
Weight excl. tunnel, in lbs 53 53 77 77 77 77 77 77 77 models
For DC Systems, Volt 12 12 12 12 24 12 12 24 24 consult
Current consumption, Amps. 195 265 250 295 190 255 325 250 250 your
Operating time dealer
- continuously at maximum thrust, 10 10 10 5 10 10 5 10 10 or
in minutes our
- at reduced thrust Endurance rated* website
ZE200 ZE300 ZE300 ZE300 ZE200 ZE300 ZE300 ZE300 ZE300
Main fuse
(200 Amps) (300 Amps) (300 Amps) (300 Amps) (200 Amps) (300 Amps) (300 Amps) (300 Amps) (300 Amps)
Batteries 12 Volt D.C., min. Ah 1 x 85 1 x 125 1 x 105 1 x 120 2 x 85 1 x 125 1 x 125 2 x 85 2 x 105
Battery main switch, model BATSW 250 250 250 250 250 250 250 250 250
* After the given runtime, power may reduce. At less than full power setting, run time depends on battery capacity
