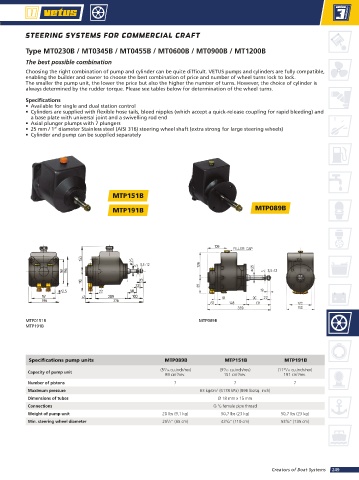

STEERING SYSTEMS FOR COMMERCIAL CRAFT

Type MT0230B / MT0345B / MT0455B / MT0600B / MT0900B / MT1200B
The best possible combination
Choosing the right combination of pump and cylinder can be quite difficult. VETUS pumps and cylinders are fully compatible,
enabling the builder and owner to choose the best combination of price and number of wheel turns lock to lock.
The smaller the pump unit, the lower the price but also the higher the number of turns. However, the choice of cylinder is
always determined by the rudder torque. Please see tables below for determination of the wheel turns.
Specifications
• Available for single and dual station control
• Cylinders are supplied with flexible hose tails, bleed nipples (which accept a quick-release coupling for rapid bleeding) and
a base plate with universal joint and a swivelling rod end
• Axial plunger plumps with 7 plungers
• 25 mm / 1” diameter Stainless steel (AISI 316) steering wheel shaft (extra strong for large steering wheels)
• Cylinder and pump can be supplied separately

MTP151B

MTP191B MTP089B

MTP0151B MTP089B
MTP191B

Specifications pump units MTP089B MTP151B MTP191B
(5 /16 cu.inch/rev) (9 /32 cu.inch/rev) (11 /32 cu.inch/rev)
7
7
21
Capacity of pump unit
89 cm /rev. 151 cm /rev. 191 cm /rev.
3
3
3
Number of pistons 7 7 7
2
Maximum pressure 63 kg/cm (6178 kPa) (896 lbs/sq. inch)
Dimensions of tubes Ø 18 mm x 15 mm
Connections G /2 female pipe thread
1
Weight of pump unit 20 lbs (9,1 kg) 50,7 lbs (23 kg) 50,7 lbs (23 kg)
1
1
Min. steering wheel diameter 25 /2” (65 cm) 43 /4” (110 cm) 53 /8” (135 cm)
1
