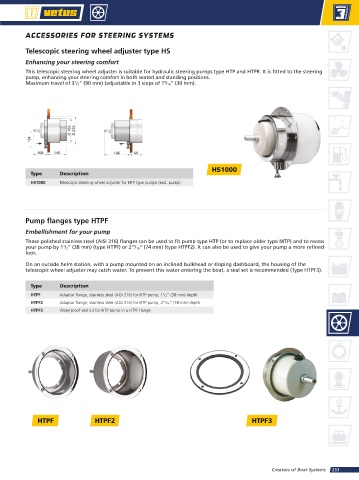

ACCESSORIES FOR STEERING SYSTEMS

Telescopic steering wheel adjuster type HS
Enhancing your steering comfort
This telescopic steering wheel adjuster is suitable for hydraulic steering pumps type HTP and HTPR. It is fitted to the steering
pump, enhancing your steering comfort in both seated and standing positions.
Maximum travel of 3 / 2” (90 mm) (adjustable in 3 steps of 1 / 16” (30 mm).
1
3

HS1000
Type Description
HS1000 Telescopic steering wheel adjuster for HTP type pumps (excl. pump)

Pump flanges type HTPF
Embellishment for your pump
These polished stainless steel (AISI 316) flanges can be used to fit pump type HTP (or to replace older type MTP) and to recess
your pump by 1 / 2” (38 mm) (type HTPF) or 2 / 16” (74 mm) (type HTPF2). It can also be used to give your pump a more refined
15
1
look.
On an outside helm station, with a pump mounted on an inclined bulkhead or sloping dashboard, the housing of the
telescopic wheel adjuster may catch water. To prevent this water entering the boat, a seal set is recommended (Type HTPF3).

Type Description
HTPF Adaptor flange, stainless steel (AISI 316) for HTP pump, 1 /2” (38 mm) depth
1
HTPF2 Adaptor flange, stainless steel (AISI 316) for HTP pump, 2 /16” (78 mm) depth
15
HTPF3 Waterproof seal kit for HTP pump in a HTPF flange

HTPF HTPF2 HTPF3
