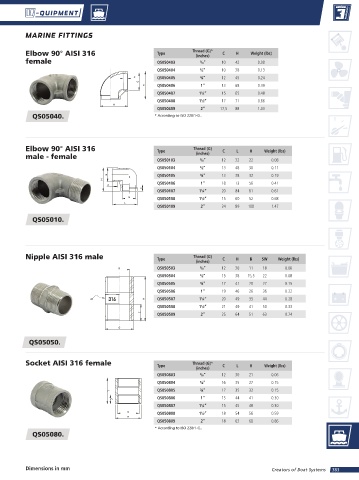

MARINE FITTINGS

Elbow 90° AISI 316 Type Thread (G)* C H Weight (lbs)
(inches)
female QS050403 3 /8” 10 42 0.08
QS050404 ½” 10 38 0.13
C QS050405 ¾” 12 45 0.24
G
H QS050406 1” 13 68 0.39
QS050407 1¼” 15 65 0.48
QS050408 1½” 17 71 0.66
H
QS050409 2” 17,5 88 1.03
QS05040. * According to ISO 228/1-G..

Elbow 90° AISI 316 Type Thread (G) C L H Weight (lbs)
male - female (inches)
QS050103 3 /8” 12 32 22 0.08
QS050104 ½” 13 48 38 0.11
G QS050105 ¾” 13 38 32 0.19
H
QS050106 1” 18 73 56 0.41
C
C
QS050107 1¼” 20 84 61 0.61
QS050108 1½” 15 60 52 0.68
G
L
QS050109 2” 24 89 108 1.47
QS05010.

Nipple AISI 316 male Thread (G)
Type
(inches) C H B SW Weight (lbs)
B QS050503 3 /8” 12 30 11 18 0.06
QS050504 ½” 15 38 15,5 22 0.08
QS050505 ¾” 17 41 20 27 0.15
QS050506 1” 19 46 26 36 0.22
SW H QS050507 1¼” 20 49 35 44 0.28
QS050508 1½” 21 49 41 50 0.33
C QS050509 2” 25 64 51 63 0.74

G

QS05050.

Socket AISI 316 female Thread (G)*
Type
(inches) C L H Weight (lbs)
QS050803 3 /8” 12 30 21 0.06
QS050804 ½” 16 35 27 0.15
QS050805 ¾” 17 35 32 0.15
L
QS050806 1” 15 44 41 0.30
C
QS050807 1¼” 15 45 48 0.30
QS050808 1½” 18 54 56 0.59
G
H
QS050809 2” 18 63 68 0.86
* According to ISO 228/1-G..
QS05080.
