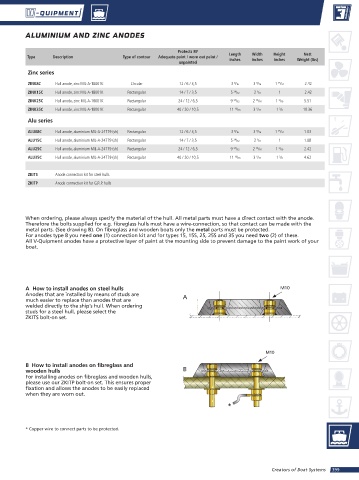

ALUMINIUM AND ZINC ANODES

Protects M 2
Type Description Type of contour Adequate paint / worn out paint / Length Width Height Nett
unpainted inches inches inches Weight (lbs)
Zinc series

ZINK8C Hull anode, zinc MIL-A-18001K Circular 12 / 6 / 3,5 3 /16 3 /16 1 /32 2.42
9
25
9
ZINK15C Hull anode, zinc MIL-A-18001K Rectangular 14 / 7 / 3,5 5 /32 2 /4 1 2.42
29
3
ZINK25C Hull anode, zinc MIL-A-18001K Rectangular 24 / 12 / 6,5 9 /32 2 /16 1 /16 5.51
27
15
3
ZINK35C Hull anode, zinc MIL-A-18001K Rectangular 40 / 20 / 10,5 11 /16 3 /32 1 /8 10.36
3
13
5
Alu series
ALU08C Hull anode, aluminium MIL-A-24779 (sh) Rectangular 12 / 6 / 3,5 3 /16 3 /16 1 /32 1.03
25
9
9
ALU15C Hull anode, aluminium MIL-A-24779 (sh) Rectangular 14 / 7 / 3,5 5 /32 2 /4 1 1.08
3
29
ALU25C Hull anode, aluminium MIL-A-24779 (sh) Rectangular 24 / 12 / 6,5 9 /32 2 /16 1 /16 2.42
3
15
27
ALU35C Hull anode, aluminium MIL-A-24779 (sh) Rectangular 40 / 20 / 10,5 11 /16 3 /32 1 /8 4.62
5
13
3
ZKITS Anode connection kit for steel hulls
ZKITP Anode connection kit for G.R.P. hulls
When ordering, please always specify the material of the hull. All metal parts must have a direct contact with the anode.
Therefore the bolts supplied for e.g. fibreglass hulls must have a wire-connection, so that contact can be made with the
metal parts. (See drawing B). On fibreglass and wooden boats only the metal parts must be protected.
For anodes type 8 you need one (1) connection kit and for types 15, 15S, 25, 25S and 35 you need two (2) of these.
All V-Quipment anodes have a protective layer of paint at the mounting side to prevent damage to the paint work of your
boat.

A How to install anodes on steel hulls M10
Anodes that are installed by means of studs are A
much easier to replace than anodes that are
welded directly to the ship’s hull. When ordering
studs for a steel hull, please select the
ZKITS bolt-on set.

M10

B How to install anodes on fibreglass and
wooden hulls B
For installing anodes on fibreglass and wooden hulls,
please use our ZKITP bolt-on set. This ensures proper
fixation and allows the anodes to be easily replaced
when they are worn out.
*

* Copper wire to connect parts to be protected.
