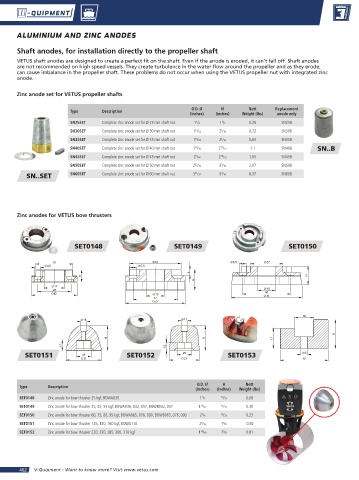

ALUMINIUM AND ZINC ANODES

Shaft anodes, for installation directly to the propeller shaft
VETUS shaft anodes are designed to create a perfect fit on the shaft. Even if the anode is eroded, it can’t fall off. Shaft anodes
are not recommended on high speed vessels. They create turbulence in the water flow around the propeller and as they erode,
can cause imbalance in the propeller shaft. These problems do not occur when using the VETUS propeller nut with integrated zinc
anode.

Zinc anode set for VETUS propeller shafts

O.D. Ø H Nett Replacement
Type Description
(inches) (inches) Weight (lbs) anode only
SN25SET Complete zinc anode set for Ø 25 mm shaft nut 1 /4 1 /2 0.26 SN25B
1
1
SN30SET Complete zinc anode set for Ø 30 mm shaft nut 1 /32 2 /16 0.72 SN30B
23
1
SN35SET Complete zinc anode set for Ø 35 mm shaft nut 1 /32 2 /16 0.63 SN35B
23
1
SN40SET Complete zinc anode set for Ø 40 mm shaft nut 1 /16 2 /32 1.1 SN40B SN..B
15
17
SN45SET Complete zinc anode set for Ø 45 mm shaft nut 2 /16 2 /32 1.65 SN45B
29
5
SN50SET Complete zinc anode set for Ø 50 mm shaft nut 2 /32 3 /16 2.07 SN50B
5
27
11
7
SN..SET SN60SET Complete zinc anode set for Ø 60 mm shaft nut 3 /32 5 /16 8.37 SN60B
Zinc anodes for VETUS bow thrusters

SET0148 SET0149 SET0150

SET0151 SET0152 SET0153

O.D. Ø H Nett
Type Description
(inches) (inches) Weight (lbs)
1
SET0148 Zinc anode for bow thruster 25 kgf, BOWA030 1 /2 13 /32 0.08
SET0149 Zinc anode for bow thruster 35, 45, 55 kgf, BOWA036, 042, 057, BOWB042, 057 1 /32 21 /32 0.30
31
SET0150 Zinc anode for bow thruster 60, 75, 80, 95 kgf, BOWA065, 076, 090, BOWB065, 076, 090 2 /8 19 /32 0.33
3
SET0151 Zinc anode for bow thruster 125, 130, 160 kgf, BOWA110 2 /16 1 /8 0.92
5
5
SET0152 Zinc anode for bow thruster 220, 230, 285, 300, 310 kgf 1 /16 1 /8 0.81
5
15
