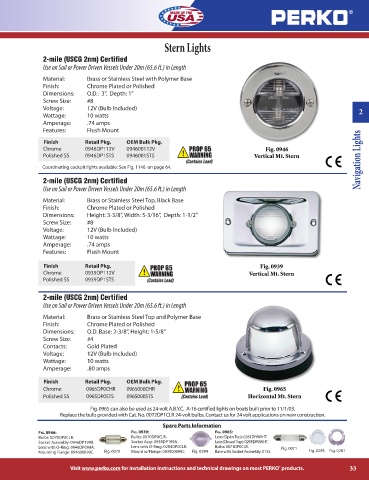

Page 33 - Perko

Stern Lights

2-mile (USCG 2nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length

Material: Brass or Stainless Steel with Polymer Base
Finish: Chrome Plated or Polished
Dimensions: O.D.: 3”, Depth: 1”
Screw Size: #8
Voltage: 12V (Bulb Included) 2
Wattage: 10 watts
Amperage: .74 amps
Features: Flush Mount
Finish Retail Pkg. OEM Bulk Pkg.
Chrome 0946DP112V 094600112V Fig. 0946
Polished SS 0946DP1STS 0946001STS Vertical Mt. Stern Navigation Lights

Coordinating cockpit lights available: See Fig. 1146 on page 64.
2-mile (USCG 2nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Brass or Stainless Steel Top, Black Base
Finish: Chrome Plated or Polished
Dimensions: Height: 3-3/8”, Width: 5-3/16”, Depth: 1-1/2”
Screw Size: #8
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .74 amps
Features: Flush Mount

Finish Retail Pkg. Fig. 0939
Chrome 0939DP112V Vertical Mt. Stern
Polished SS 0939DP1STS

2-mile (USCG 2nm) Certified
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length
Material: Brass or Stainless Steel Top and Polymer Base
Finish: Chrome Plated or Polished
Dimensions: O.D. Base: 2-3/8”, Height: 1-5/8”
Screw Size: #4
Contacts: Gold Plated
Voltage: 12V (Bulb Included)
Wattage: 10 watts
Amperage: .80 amps
Finish Retail Pkg. OEM Bulk Pkg.
Chrome 0965DP0CHR 0965000CHR Fig. 0965
Polished SS 0965DP0STS 0965000STS Horizontal Mt. Stern

Fig. 0965 can also be used as 24-volt A.B.Y.C. A-16 certified lights on boats built prior to 11/1/03.
Replace the bulb provided with Cat. No. 0072DP1CLR 24-volt bulbs. Contact us for 24 volt applications on new construction.
Spare Parts Information
FIG. 0946: FIG. 0939: FIG. 0965:
Bulbs: 0070DP0CLR. Bulbs: 0070DP0CLR. Lens (Open Top): 0281DPAWHT.
Socket Assembly: 0946DP199B. Socket Assy: 0939DP199A. Lens(Closed Top): 0295DP0WHT.
Lens with O-Ring: 0946DP099A. Lens with O-Ring: 0284DP0CLR. Bulbs: 0071DP0CLR. Fig. 0071
Mounting Flange: 094600099C. Fig. 0070 Mount w/Flange: 093900099C Fig. 0284 Base with Socket Assembly: 0135. Fig. 0295 Fig. 0281

®
Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 33
