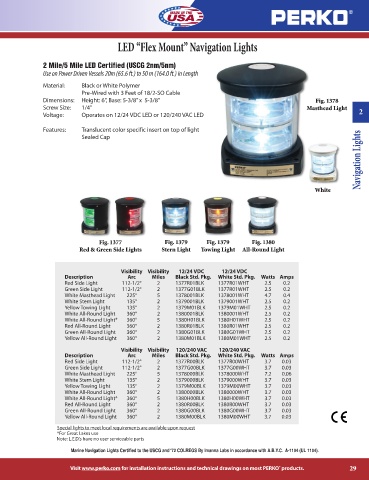

Page 29 - Perko

LED “Flex Mount” Navigation Lights

2 Mile/5 Mile LED Certified (USCG 2nm/5nm)
Use on Power Driven Vessels 20m (65.6 ft.) to 50 m (164.0 ft.) in Length

Material: Black or White Polymer
Pre-Wired with 3 Feet of 18/2-SO Cable
Dimensions: Height: 6”, Base: 5-3/8” x 5-3/8” Fig. 1378
Screw Size: 1/4” Masthead Light 2
Voltage: Operates on 12/24 VDC LED or 120/240 VAC LED

Features: Translucent color specific insert on top of light
Navigation Lights
Sealed Cap

White

Fig. 1377 Fig. 1379 Fig. 1379 Fig. 1380
Red & Green Side Lights Stern Light Towing Light All-Round Light

Visibility Visibility 12/24 VDC 12/24 VDC
Description Arc Miles Black Std. Pkg. White Std. Pkg. Watts Amps
Red Side Light 112-1/2° 2 1377R01BLK 1377R01WHT 2.5 0.2
Green Side Light 112-1/2° 2 1377G01BLK 1377R01WHT 2.5 0.2
White Masthead Light 225° 5 1378001BLK 1378001WHT 4.7 0.4
White Stern Light 135° 2 1379001BLK 1379001WHT 2.5 0.2
Yellow Towing Light 135° 2 1379M01BLK 1379M01WHT 2.5 0.2
White All-Round Light 360° 2 1380001BLK 1380001WHT 2.5 0.2
White All-Round Light* 360° 5 1380H01BLK 1380H01WHT 2.5 0.2
Red All-Round Light 360° 2 1380R01BLK 1380R01WHT 2.5 0.2
Green All-Round Light 360° 2 1380G01BLK 1380G01WHT 2.5 0.2
Yellow All-Round Light 360° 2 1380M01 BLK 1380M01WHT 2.5 0.2

Visibility Visibility 120/240 VAC 120/240 VAC
Description Arc Miles Black Std. Pkg. White Std. Pkg. Watts Amps
Red Side Light 112-1/2° 2 1377R00BLK 1377R00WHT 3.7 0.03
Green Side Light 112-1/2° 2 1377G00BLK 1377G00WHT 3.7 0.03
White Masthead Light 225° 5 1378000BLK 1378000WHT 7.2 0.06
White Stern Light 135° 2 1379000BLK 1379000WHT 3.7 0.03
Yellow Towing Light 135° 2 1379M00BLK 1379M00WHT 3.7 0.03
White All-Round Light 360° 2 1380000BLK 1380000WHT 3.7 0.03
White All-Round Light* 360° 5 1380H00BLK 1380H00WHT 3.7 0.03
Red All-Round Light 360° 2 1380R00BLK 1380R00WHT 3.7 0.03
Green All-Round Light 360° 2 1380G00BLK 1380G00WHT 3.7 0.03
Yellow All-Round Light 360° 2 1380M00BLK 1380M00 WHT 3.7 0.03

Special lights to meet local requirements are available upon request
*For Great Lakes use
Note: L.E.D.’s have no user serviceable parts

Marine Navigation Lights Certified to the USCG and ‘72 COLREGS By Imanna Labs in accordance with A.B.Y.C. A-1104 (UL 1104).

Visit www.perko.com for installation instructions and technical drawings on most PERKO products. 29
®
