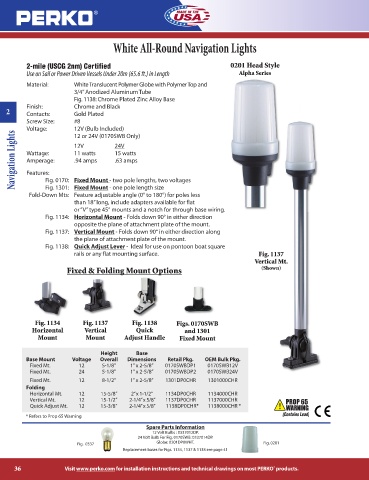

White All-Round Navigation Lights

2-mile (USCG 2nm) Certified 0201 Head Style
Use on Sail or Power Driven Vessels Under 20m (65.6 ft.) in Length Alpha Series

Material: White Translucent Polymer Globe with Polymer Top and
3/4” Anodized AluminumTube
Fig. 1138: Chrome Plated Zinc Alloy Base
Finish: Chrome and Black
2 Contacts: Gold Plated
Screw Size: #8
Voltage: 12V (Bulb Included)
Navigation Lights Wattage: 11 watts 24V
12 or 24V (0170SWB Only)
12V
15 watts
Amperage: .94 amps
.63 amps
Features:
Fig. 0170: Fixed Mount - two pole lengths, two voltages
Fig. 1301: Fixed Mount - one pole length size
Fold-Down Mts: Feature adjustable angle (0° to 180°) for poles less
than 18” long, include adapters available for flat
or “V” type 45° mounts and a notch for through base wiring.
Fig. 1134: Horizontal Mount - Folds down 90° in either direction
opposite the plane of attachment plate of the mount.
Fig. 1137: Vertical Mount - Folds down 90° in either direction along
the plane of attachment plate of the mount.
Fig. 1138: Quick Adjust Lever - Ideal for use on pontoon boat square
rails or any flat mounting surface. Fig. 1137
Vertical Mt.
Fixed & Folding Mount Options (Shown)

Fig. 1134 Fig. 1137 Fig. 1138 Figs. 0170SWB
Horizontal Vertical Quick and 1301
Mount Mount Adjust Handle Fixed Mount

Height Base
Base Mount Voltage Overall Dimensions Retail Pkg. OEM Bulk Pkg.
Fixed Mt. 12 5-1/8” 1” x 2-5/8” 0170SWBDP1 0170SWB12V
Fixed Mt. 24 5-1/8” 1” x 2-5/8” 0170SWBDP2 0170SWB24V
Fixed Mt. 12 8-1/2” 1” x 2-5/8” 1301DP0CHR 1301000CHR
Folding
Horizontal Mt. 12 15-5/8” 2” x 1-1/2” 1134DP0CHR 1134000CHR
Vertical Mt. 12 15-1/2” 2-1/4” x 5/8” 1137DP0CHR 1137000CHR
Quick Adjust Mt. 12 15-3/8” 2-1/4” x 5/8” 1138DP0CHR* 1138000CHR *
* Refers to Prop 65 Warning

Spare Parts Information
12 Volt Bulbs : 0337012DP.
24 Volt Bulb For Fig. 0170SWB: 0337014DP.
Fig. 0337 Globe: 0201DP0WHT. Fig. 0201
Replacement bases for Figs. 1134, 1137 & 1138 see page 41
