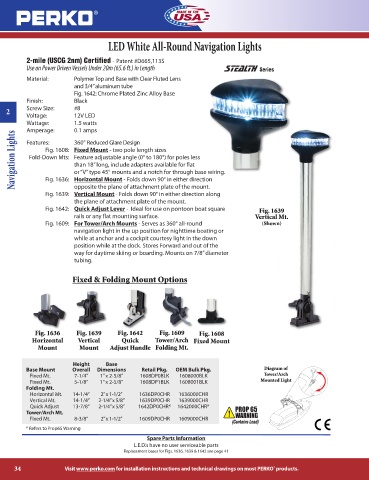

Page 34 - Perko

LED White All-Round Navigation Lights

2-mile (USCG 2nm) Certified - Patent #D665,113S
Use on Power Driven Vessels Under 20m (65.6 ft.) in Length Stealth Series

Material: Polymer Top and Base with Clear Fluted Lens
and 3/4” aluminum tube
Fig. 1642: Chrome Plated Zinc Alloy Base
Finish: Black
Screw Size: #8
2
Voltage: 12V LED
Wattage: 1.5 watts
Amperage: 0.1 amps
Navigation Lights Features: 360° Reduced Glare Design

Fig. 1608: Fixed Mount - two pole length sizes
Fold-Down Mts: Feature adjustable angle (0° to 180°) for poles less
than 18” long, include adapters available for flat
or “V” type 45° mounts and a notch for through base wiring.
Fig. 1636: Horizontal Mount - Folds down 90° in either direction
opposite the plane of attachment plate of the mount.
Fig. 1639: Vertical Mount - Folds down 90° in either direction along
the plane of attachment plate of the mount.
Fig. 1642: Quick Adjust Lever - Ideal for use on pontoon boat square Fig. 1639
rails or any flat mounting surface. Vertical Mt.
Fig. 1609: For Tower/Arch Mounts - Serves as 360° all-round (Shown)
navigation light in the up position for nighttime boating or
while at anchor and a cockpit courtesy light in the down
position while at the dock. Stores Forward and out of the
way for daytime skiing or boarding. Mounts on 7/8” diameter
tubing.

Fixed & Folding Mount Options

Fig. 1636 Fig. 1639 Fig. 1642 Fig. 1609 Fig. 1608
Horizontal Vertical Quick Tower/Arch Fixed Mount
Mount Mount Adjust Handle Folding Mt.

Height Base
Base Mount Overall Dimensions Retail Pkg. OEM Bulk Pkg. Diagram of
Fixed Mt. 7-1/4” 1” x 2-5/8” 1608DP0BLK 1608000BLK Tower/Arch
Fixed Mt. 5-1/8” 1” x 2-5/8” 1608DP1BLK 1608001BLK Mounted Light
Folding Mt.
Horizontal Mt. 14-1/4” 2” x 1-1/2” 1636DP0CHR 1636000CHR
Vertical Mt. 14-1/4” 2-1/4” x 5/8” 1639DP0CHR 1639000CHR
Quick Adjust 13-7/8” 2-1/4” x 5/8” 1642DP0CHR* 1642000CHR*
Tower/Arch Mt.
Fixed Mt. 8-3/8” 2” x 1-1/2” 1609DP0CHR 1609000CHR
* Refers to Prop65 Warning
Spare Parts Information
L.E.D.’s have no user serviceable parts
Replacement bases for Figs. 1636, 1639 & 1642 see page 41

34 Visit www.perko.com for installation instructions and technical drawings on most PERKO products.
®
