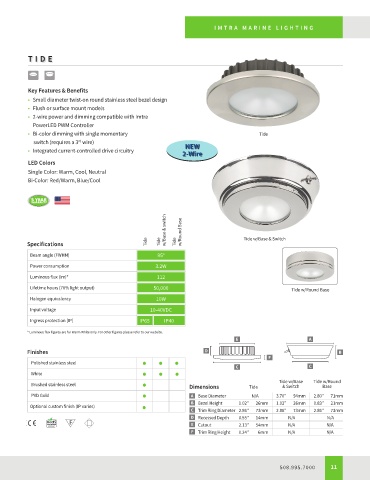

Page 11 - Imtra_lighting
P. 11
IMTR A MARINE LIGHTING
TIDE
Key Features & Benefits
• Small diameter twist-on round stainless steel bezel design
• Flush or surface mount models
• 2-wire power and dimming compatible with Imtra
PowerLED PWM Controller
• Bi-color dimming with single momentary Tide
switch (requires a 3 wire) NEW
rd
• Integrated current-controlled drive circuitry 2-Wire
LED Colors
Single Color: Warm, Cool, Neutral
Bi-Color: Red/Warm, Blue/Cool
w/Base & switch w/Round Base
Specifications Tide Tide Tide Tide w/Base & Switch
Beam angle (FWHM) 95 O
Power consumption 3.2W
Luminous flux (lm)* 112
Lifetime hours (70% light output) 50,000 Tide w/Round Base
Halogen equivalency 10W
Input voltage 10-40VDC
Ingress protection (IP) IP65 IP40
* Luminous flux figures are for Warm White only. For other figures please refer to our website.
E A
Finishes D B
• • • F
Polished stainless steel C C
• • •
White
• Tide w/Base Tide w/Round
Brushed stainless steel Dimensions Tide & Switch Base
•
PVD Gold A Base Diameter N/A 3.70" 94mm 2.80" 71mm
• B Bezel Height 1.02” 26mm 1.02" 26mm 0.83" 21mm
Optional custom finish (IP varies) C Trim Ring Diameter 2.86" 73mm 2.86" 73mm 2.86" 73mm
D Recessed Depth 0.55" 14mm N/A N/A
E Cutout 2.13" 54mm N/A N/A
F Trim Ring Height 0.24" 6mm N/A N/A
508.995.7000 11
