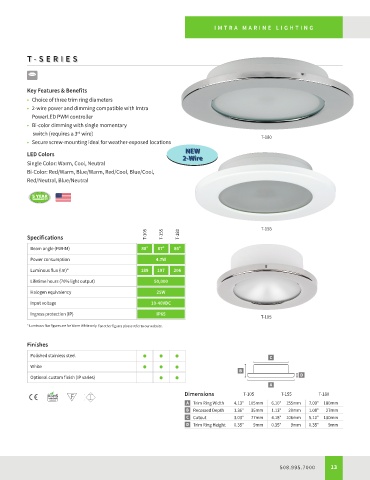

Page 13 - Imtra_lighting

IMTR A MARINE LIGHTING

T -SERIES

Key Features & Benefits
• Choice of three trim ring diameters
• 2-wire power and dimming compatible with Imtra
PowerLED PWM controller
• Bi-color dimming with single momentary
rd
switch (requires a 3 wire) T-180
• Secure screw-mounting ideal for weather-exposed locations
NEW
LED Colors 2-Wire
Single Color: Warm, Cool, Neutral
Bi-Color: Red/Warm, Blue/Warm, Red/Cool, Blue/Cool,
Red/Neutral, Blue/Neutral

T-155
Specifications T-105 T-155 T-180

Beam angle (FWHM) 88 O 87 O 86 O
Power consumption 4.7W
Luminous flux (lm)* 189 197 206
Lifetime hours (70% light output) 50,000

Halogen equivalency 25W
Input voltage 10-40VDC
Ingress protection (IP) IP65
T-105
* Luminous flux figures are for Warm White only. For other figures please refer to our website.

Finishes
• • •
Polished stainless steel C
• • •
White B
• • D
Optional custom finish (IP varies)
A
Dimensions T-105 T-155 T-180
A Trim Ring Width 4.13" 105mm 6.10" 155mm 7.09" 180mm
B Recessed Depth 1.36" 35mm 1.13" 29mm 1.08" 27mm
C Cutout 3.03" 77mm 4.18" 106mm 5.10" 130mm
D Trim Ring Height 0.35" 9mm 0.35" 9mm 0.35" 9mm

508.995.7000 13
