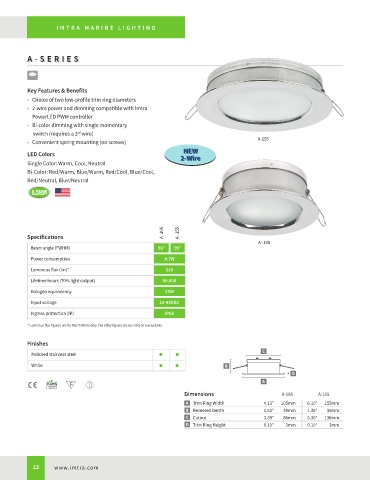

Page 12 - Imtra_lighting
P. 12
IMTR A MARINE LIGHTING
A-SERIES
Key Features & Benefits
• Choice of two low-profile trim ring diameters
• 2-wire power and dimming compatible with Imtra
PowerLED PWM controller
• Bi-color dimming with single momentary
rd
switch (requires a 3 wire)
• Convenient spring mounting (no screws) A-155
NEW
LED Colors 2-Wire
Single Color: Warm, Cool, Neutral
Bi-Color: Red/Warm, Blue/Warm, Red/Cool, Blue/Cool,
Red/Neutral, Blue/Neutral
A -105 A -155
Specifications
A -105
Beam angle (FWHM) 96 O 95 O
Power consumption 4.7W
Luminous flux (lm)* 216
Lifetime hours (70% light output) 50,000
Halogen equivalency 25W
Input voltage 10-40VDC
Ingress protection (IP) IP65
* Luminous flux figures are for Warm White only. For other figures please refer to our website.
Finishes
• • C
Polished stainless steel
• •
White B
D
A
Dimensions A-105 A-155
A Trim Ring Width 4.13" 105mm 6.10" 155mm
B Recessed Depth 1.53" 39mm 1.35" 35mm
C Cutout 3.39" 86mm 5.36" 136mm
D Trim Ring Height 0.10" 3mm 0.10" 3mm
12 www.imtra.com
