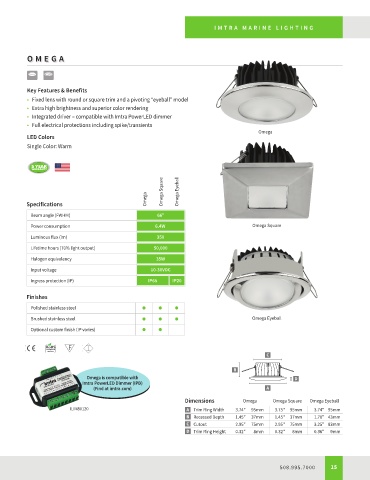

Page 15 - Imtra_lighting

IMTR A MARINE LIGHTING

OMEG A

Key Features & Benefits
• Fixed lens with round or square trim and a pivoting “eyeball” model
• Extra high brightness and superior color rendering
• Integrated driver – compatible with Imtra PowerLED dimmer
• Full electrical protections including spike/transients
Omega
LED Colors
Single Color: Warm

Omega Square Omega Eyeball

Omega
Specifications

Beam angle (FWHM) 66 O
Power consumption 6.4W Omega Square
Luminous flux (lm) 350
Lifetime hours (70% light output) 50,000

Halogen equivalency 35W
Input voltage 10-30VDC
Ingress protection (IP) IP65 IP20

Finishes
• • •
Polished stainless steel
• • •
Brushed stainless steel Omega Eyeball
• •
Optional custom finish (IP varies)

C

B
Omega is compatible with D
Imtra PowerLED Dimmer (IPD)
(Find at imtra.com) A
Dimensions Omega Omega Square Omega Eyeball
ILIM80120 A Trim Ring Width 3.74" 95mm 3.75" 95mm 3.74" 95mm
B Recessed Depth 1.45" 37mm 1.45" 37mm 1.70" 43mm
C Cutout 2.95" 75mm 2.95" 75mm 3.25" 83mm
D Trim Ring Height 0.32" 8mm 0.32" 8mm 0.36" 9mm

508.995.7000 15
