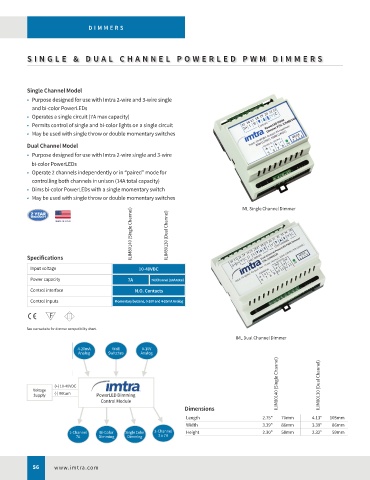

DIMMER S

SINGLE & DU AL CHANNEL PO WERLED PWM DIMMER S

Single Channel Model
• Purpose designed for use with Imtra 2-wire and 3-wire single
and bi-color PowerLEDs
• Operates a single circuit (7A max capacity)
• Permits control of single and bi-color lights on a single circuit
• May be used with single throw or double momentary switches
Dual Channel Model
• Purpose designed for use with Imtra 2-wire single and 3-wire
bi-color PowerLEDs
• Operate 2 channels independently or in “paired” mode for
controlling both channels in unison (14A total capacity)
• Dims bi-color PowerLEDs with a single momentary switch
• May be used with single throw or double momentary switches
2 YEAR IML Single Channel Dimmer
ILIM80140 (Single Channel) ILIM80130 (Dual Channel)

MADE IN U.S.A.

Specifications

Input voltage 10-40VDC
Power capacity 7A 7A/Channel (14A total)
Control interface N.O. Contacts

Control inputs Momentary buttons, 0-10V and 4-20mA Analog

See our website for dimmer compatibility chart.
IML Dual Channel Dimmer
4-20mA Wall 0-10V
Analog Switches Analog
ILIM80140 (Single Channel)

(+) 10-40VDC ILIM80130 (Dual Channel)
Voltage
Supply (-) Return PowerLED Dimming
Control Module
Dimensions
Length 2.75" 70mm 4.13" 105mm
Width 3.39" 86mm 3.39" 86mm
1-Channel Bi-Color Single Color 2-Channel Height 2.30" 58mm 2.32" 59mm
7A Dimming Dimming 2 x 7A
