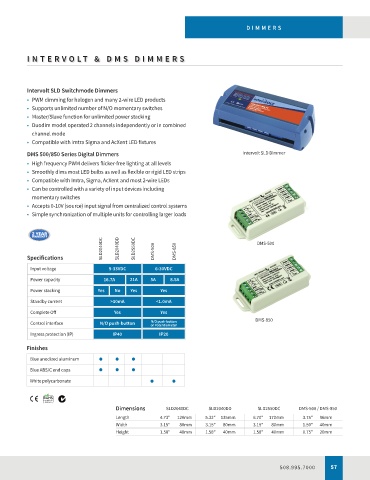

Page 57 - Imtra_lighting

DIMMER S

INTER V OL T & DMS DIMMER S

Intervolt SLD Switchmode Dimmers
• PWM dimming for halogen and many 2-wire LED products
• Supports unlimited number of N/O momentary switches
• Master/Slave function for unlimited power stacking
• Duodim model operated 2 channels independently or in combined
channel mode
• Compatible with Imtra Sigma and AcXent LED fixtures
DMS 500/850 Series Digital Dimmers Intervolt SLD Dimmer
• High frequency PWM delivers flicker-free lighting at all levels
• Smoothly dims most LED bulbs as well as flexible or rigid LED strips
• Compatible with Imtra, Sigma, AcXent and most 2-wire LEDs
• Can be controlled with a variety of input devices including
momentary switches
• Accepts 0-10V (source) input signal from centralized control systems
• Simple synchronization of multiple units for controlling larger loads
2 YEAR

SLD2040DC SLD2040DD SLD2550DC DMS-500 DMS-850 DMS-500

Specifications

Input voltage 9-33VDC 6-30VDC
Power capacity 16.7A 21A 5A 8.5A
Power stacking Yes No Yes Yes

Standby current >10mA <1.0mA
Complete Off Yes Yes
DMS-850
N/O push-button
Control interface N/O push-button or Potentiometer
Ingress protection (IP) IP40 IP20

Finishes
• • •
Blue anodized aluminum

Blue ABS/C end caps • • •
• •
White polycarbonate

Dimensions SLD2040DC SLD2040DD SLD2550DC DMS-500 / DMS-850

Length 4.73" 120mm 5.32" 135mm 6.70" 170mm 3.75" 96mm
Width 3.15" 80mm 3.15" 80mm 3.15" 80mm 1.50" 40mm
Height 1.58" 40mm 1.58" 40mm 1.58" 40mm 0.75" 20mm
