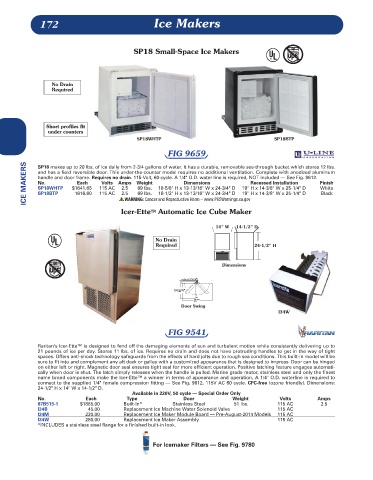

Page 173 - Lewis

172 Ice Makers

SP18 Small-Space Ice Makers

No Drain
Required

Short profiles fit
under counters
SP18WHTP SP18BTP

FIG 9659
ICE MAKERS and has a field reversible door. This under-the-counter model requires no additional ventilation. Complete with anodized aluminum
SP18 makes up to 20 lbs. of ice daily from 2-3/4 gallons of water. It has a durable, removable see-through bucket which stores 12 lbs.
handle and door frame. Requires no drain. 115-Volt, 60-cycle. A 1/4" O.D. water line is required, NOT included — See Fig. 9612.
Weight
Each
Finish
Volts
No.
Dimensions
Amps
Recessed Installation
$1641.65
2.5
19" H x 14-3/8" W x 25-1/4" D
White
SP18WHTP
69 lbs.
18-5/8" H x 13-13/16" W x 24-3/4" D
115 AC
19" H x 14-3/8" W x 25-1/4" D
Black
18-1/2" H x 13-13/16" W x 24-3/4" D
2.5
69 lbs.
SP18BTP
1616.60
115 AC
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Icer-Ette™ Automatic Ice Cube Maker
14" W 14-1/2" D
No Drain
Required 24-1/2" H
Dimensions
Door Swing
I34W
FIG 9541

Raritan's Icer-Ette™ is designed to fend off the damaging elements of sun and turbulent motion while consistently delivering up to
21 pounds of ice per day. Stores 11 lbs. of ice. Requires no drain and does not have protruding handles to get in the way of tight
spaces. Offers anti-shock technology safeguards from the effects of hard jolts due to rough sea conditions. This built-in model will be
sure to fit into and complement any aft deck or galley with a customized appearance that is designed to impress. Door can be hinged
on either left or right. Magnetic door seal ensures tight seal for more efficient operation. Positive latching feature engages automati-
cally when door is shut. The latch simply releases when the handle is pulled. Marine grade motor, stainless steel and only the finest
name brand components make the Icer-Ette™ a winner in terms of appearance and operation. A 1/4" O.D. waterline is required to
connect to the supplied 1/4" female compression fitting — See Fig. 9612. 115V AC 60 cycle. CFC-free (ozone friendly). Dimensions:
24-1/2" H x 14" W x 14-1/2" D.
Available in 220V, 50 cycle — Special Order Only
No. Each Type Door Weight Volts Amps
87B515-1 $1885.00 Built-In* Stainless Steel 51 lbs. 115 AC 2.5
I34B 45.00 Replacement Ice Machine Water Solenoid Valve 115 AC
I34M 220.00 Replacement Ice Maker Module Board — Pre-August-2014 Models 115 AC
I34W 280.00 Replacement Ice Maker Assembly 115 AC
*INCLUDES a stainless steel flange for a finished built-in look.

For Icemaker Filters — See Fig. 9780
