Page 172 - Lewis

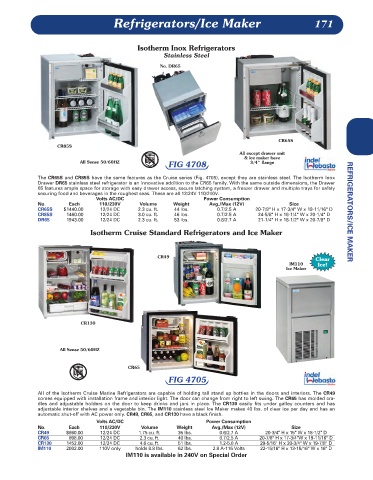

Refrigerators/Ice Maker 171

Isotherm Inox Refrigerators
Stainless Steel

No. DR65

CR65S
CR85S
All except drawer unit
& ice maker have
All Sense 50/60HZ 3/4" flange
FIG 4708
The CR65S and CR85S have the same features as the Cruise series (Fig. 4705), except they are stainless steel. The Isotherm Inox
Drawer DR65 stainless steel refrigerator is an innovative addition to the CR65 family. With the same outside dimensions, the Drawer
65 features ample space for storage with easy drawer access, secure latching system, a freezer drawer and multiple trays for safely
securing food and beverages in the roughest seas. These are all 12/24V 110/240V.
Volts AC/DC Power Consumption
No. Each 110/230V Volume Weight Avg./Max (12V) Size
CR65S $1440.00 12/24 DC 2.3 cu. ft. 44 lbs. 0.7/2.5 A 20-7/8" H x 17-3/4" W x 19-11/16" D
CR85S 1460.00 12/24 DC 3.0 cu. ft. 46 lbs. 0.7/2.5 A 24-5/8" H x 18-1/4" W x 20-1/4" D REFRIGERATORS/ICE MAKER
DR65 1943.00 12/24 DC 2.3 cu. ft. 53 lbs. 0.8/2.7 A 21-1/4" H x 18-1/2" W x 20-7/8" D
Isotherm Cruise Standard Refrigerators and Ice Maker

CR49
Clear
IM110 Ice!
Ice Maker

CR130

All Sense 50/60HZ

CR65

FIG 4705
All of the Isotherm Cruise Marine Refrigerators are capable of holding tall stand up bottles in the doors and interiors. The CR49
comes equipped with installation frame and interior light. The door can change from right to left swing. The CR65 has molded cra-
dles and adjustable holders on the door to keep drinks and jars in place. The CR130 easily fits under galley counters and has
adjustable interior shelves and a vegetable bin. The IM110 stainless steel Ice Maker makes 40 lbs. of clear ice per day and has an
automatic shut-off with AC power only. CR49, CR65, and CR130 have a black finish.
Volts AC/DC Power Consumption
No. Each 110/230V Volume Weight Avg./Max (12V) Size
CR49 $860.00 12/24 DC 1.75 cu. ft. 35 lbs. 0.6/2.7 A 20-3/4" H x 15" W x 18-1/2" D
CR65 898.00 12/24 DC 2.3 cu. ft. 40 lbs. 0.7/2.5 A 20-7/8" H x 17-3/4"W x 19-11/16" D
CR130 1452.00 12/24 DC 4.6 cu. ft. 51 lbs. 1.2-5.0 A 29-5/16" H x 20-3/4" W x 19-7/8" D
IM110 2002.00 110V only holds 8.8 lbs. 62 lbs. 2.8 A-115 Volts 22-15/16" H x 13-15/16" W x 16" D
IM110 is available in 240V on Special Order
